Convertible Top Deck Lid Position Switch / Sensor: Testing and Inspection

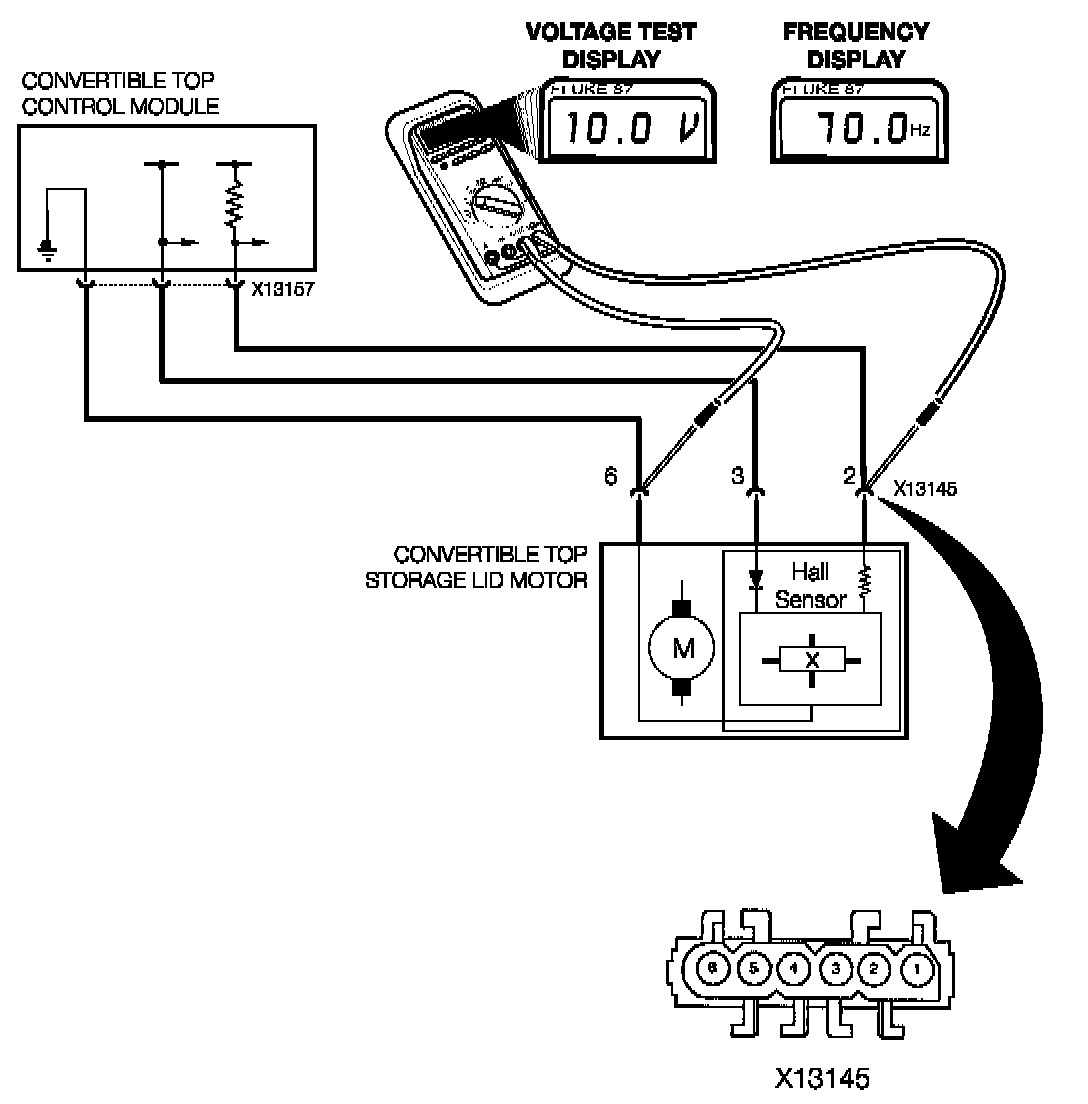

CONVERTIBLE TOP STORAGE LID POSITION HALL SENSOR TESTS:



NOTE: Before testing always verify pin numbers and wire colors from the appropriate wiring diagram.

DC Voltage Test Procedures:

^ At X13145 disconnect and access ground (pin 6) and the hall sensor supply voltage (pin 3) = battery voltage.

^ Re-connect plug and check hall sensor signal (pin 2), activate convertible top, with storage lid in motion = 5.0 volts.

Tap switch to display high/low signal
- High = 10.0 volts.
- Low = 0 volts.

Voltage Frequency Test Procedure:

^ With storage compartment lid moving in either direction, pin 2 = 70 Hz.
