Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Daytime Running Lamp Relay >> Locations >> With Heating

With Heating

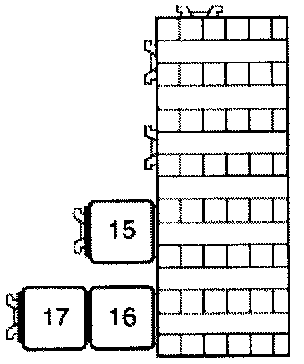

Relay Behind Glove Compartment







15 Relay for door-lock heating
16 thermostatic switch device or relay for daytime-driving light
17 Relay for front fog lights
