11 00 039 Checking Compression of All Cylinders

- Read out fault memory of DME control unit
- Check stored faults
- Rectify faults
- Clear fault memory

Caution: High tension - mortal danger!

Interrupt power supply to ignition coils. Follow instructions for checking compression pressure.
Disconnect DME relay (K6300).

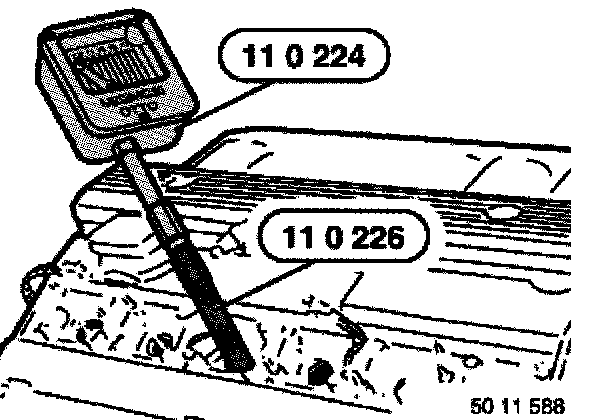

Remove all spark plugs. Screw special tool 11 0 226 by hand into spark plug thread and connect special tool 11 0 224.

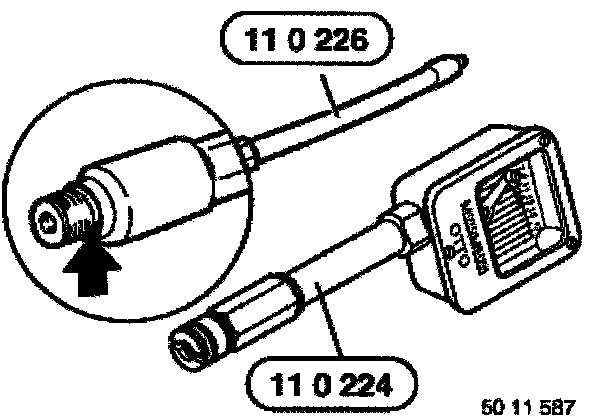

Note: Check that seal is in perfect condition.





Depress accelerator and actuate starter until compression stops rising.
Compression pressure, refer to Engine, Specifications.
Now clear the fault memory.
