4HP 24




4HP 24

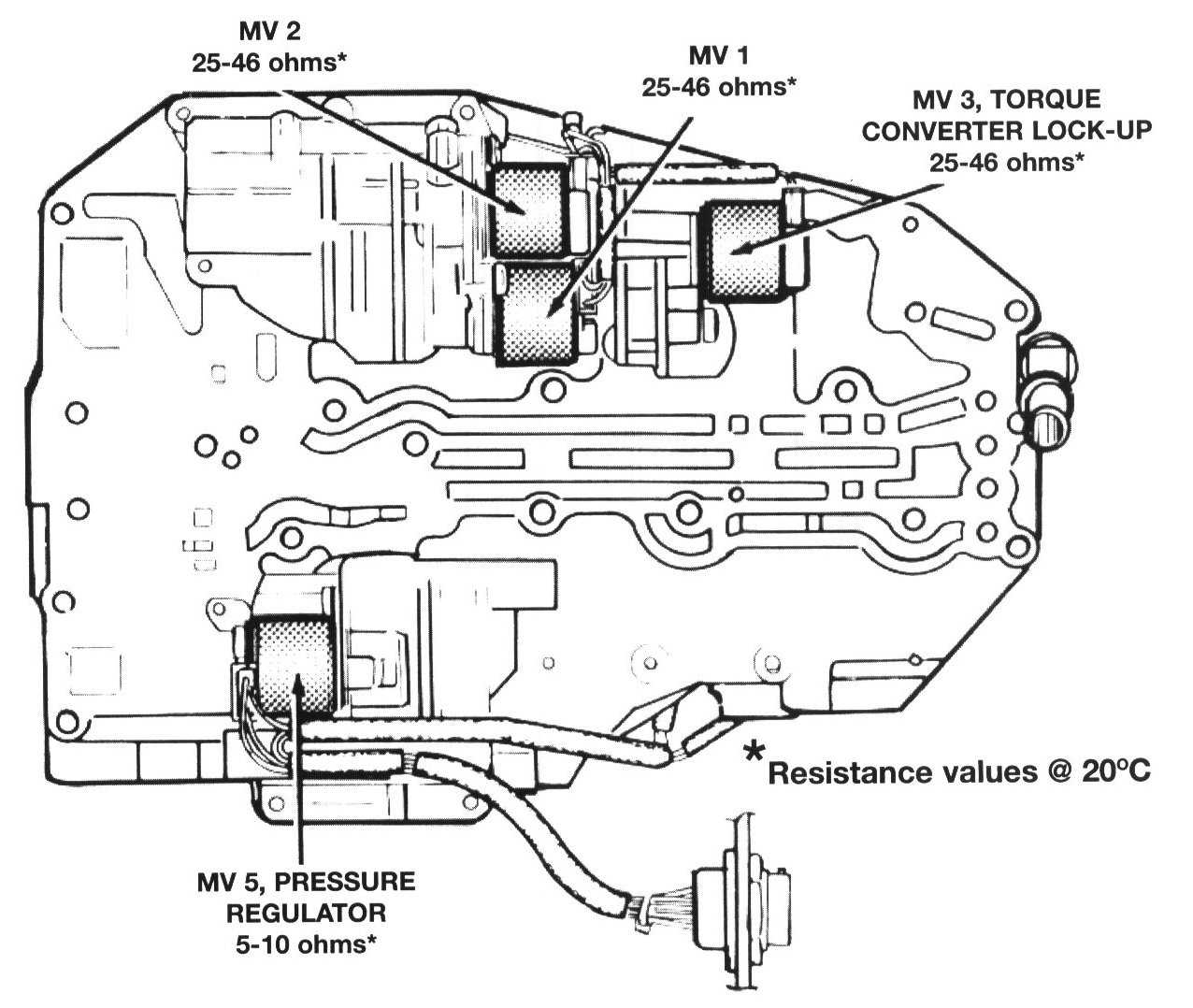

Valve Body Component Identification

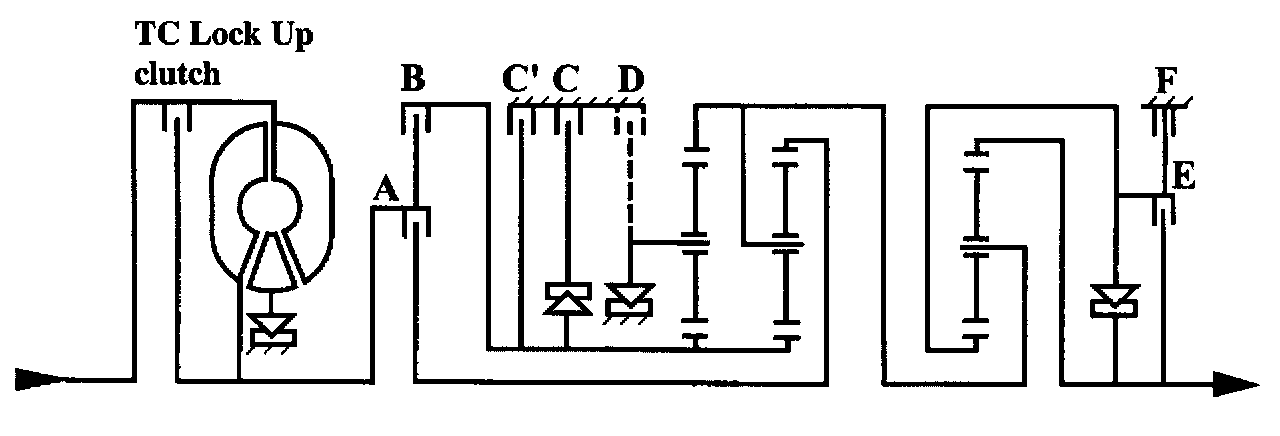

4HP 24 E9 - Power Flow Schematic

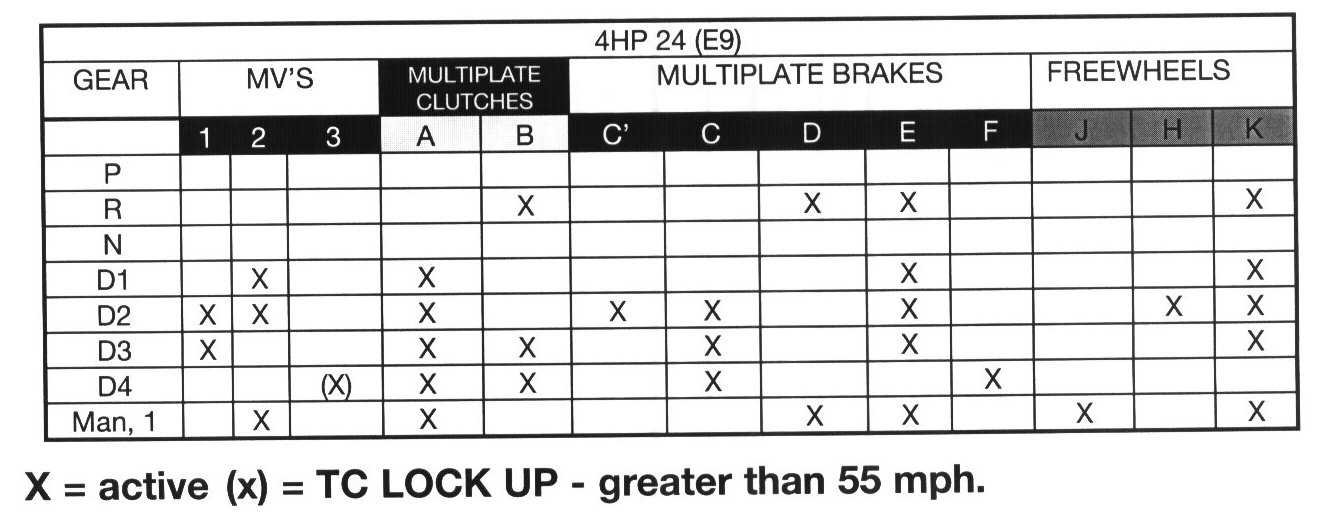

Gear Application Chart

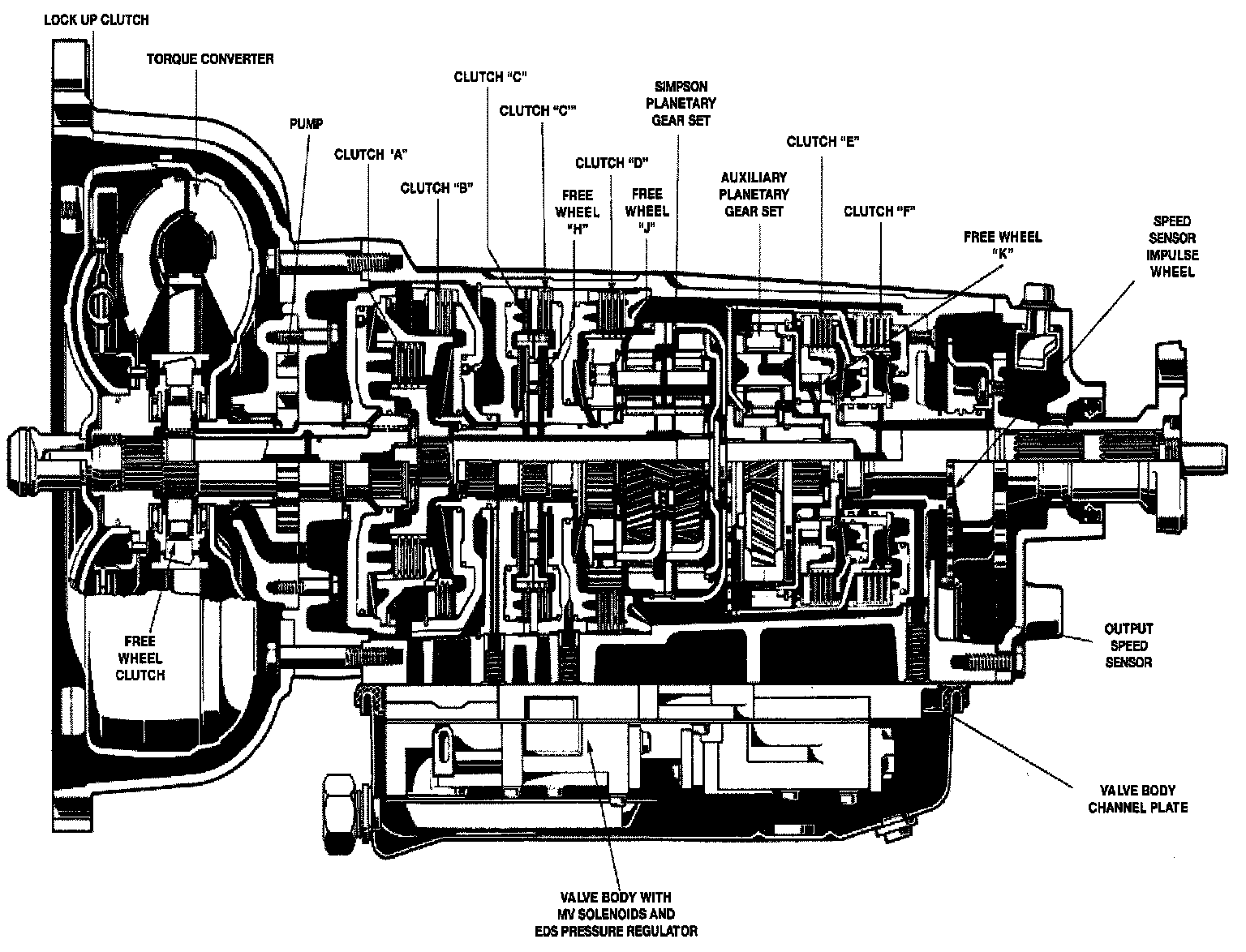

Component Locations
