Moving About the Schematic

With the schematic of a component or system displayed you can find a connector location by:

1. Select the connector (turns yellow)
2. Select "Document"
3. Select the connector # (EO) on the "Right Page"
4. Select "Display"

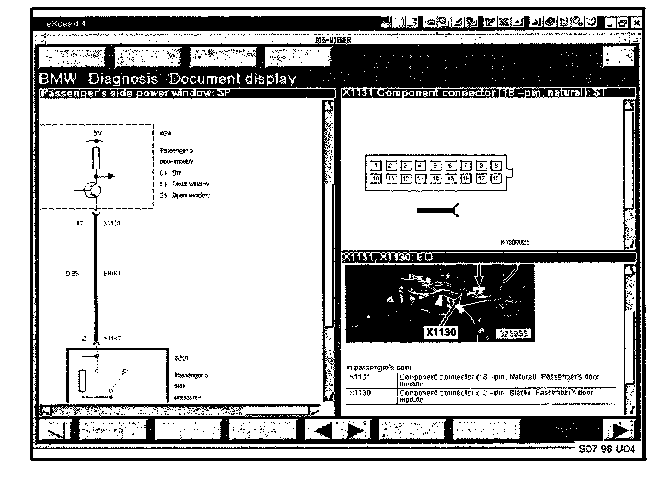

With the schematic of a component or system displayed you can find the connector view by:

1. Select the connector (turns yellow)
2. Select "Document"
3. Select the connector # (ST) on the "Right Page"
4. Select "Display"

Note:
Connector location and view may be viewed at the same time by selecting EO and ST at the document page

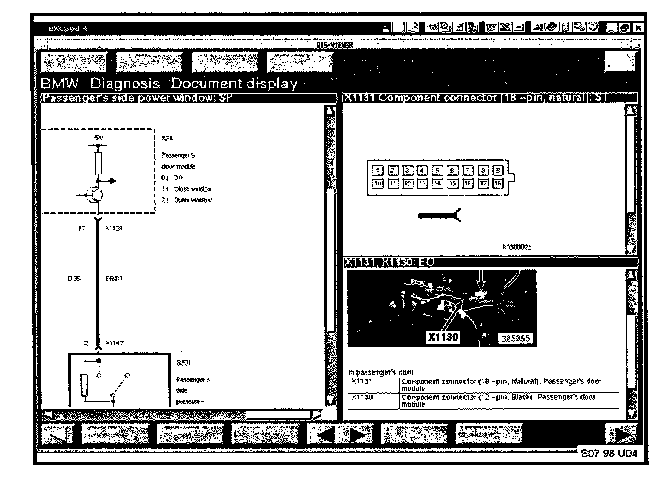

Moving from a major component such as the general module (to use an example give above) to a sub-component such as the power window circuit is an easy process.

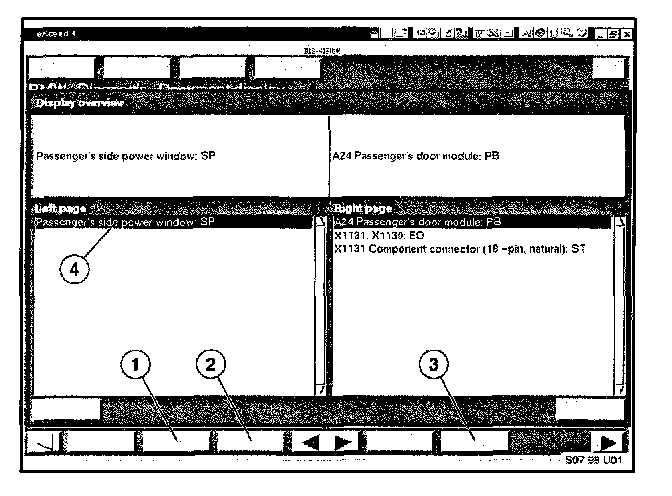

1. Highlight the desired power window circuit (turns yellow)
2. Select "document"
3. Select "component" (SP) on "Left Page" (S07 98 U01 # 4)
4. Select "Display"

The schematic of the desired sub-component will now be displayed.

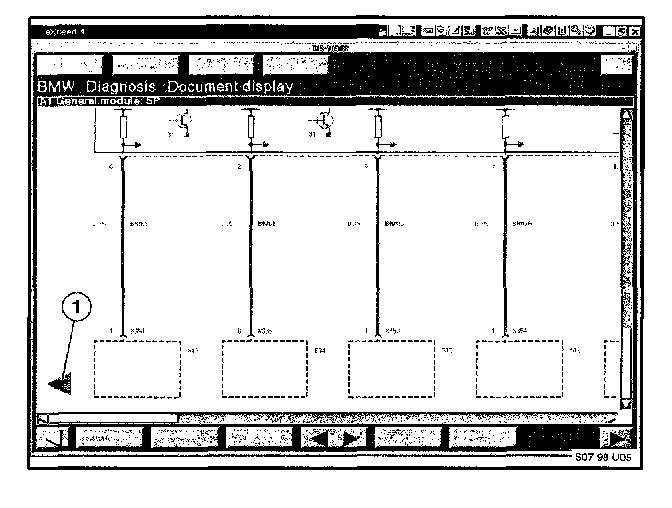

Further movements to other sub-components may be performed as described above. If you wish to back up one schematic or all the way to the first schematic (general module in the example) simply:





Select the "-->" in a box on the left bottom side of the schematic. You will go back one screen for each selection of the "-->" (1).
