20 Pin Relay-Module Connector
20 Pin Relay-Module Connector
-

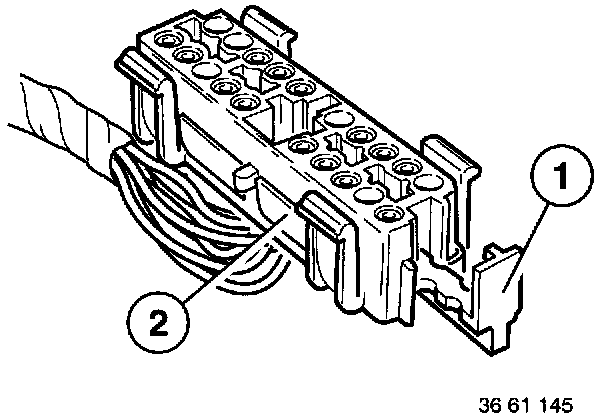

Pull locking slide (1) out of connector (2).
-

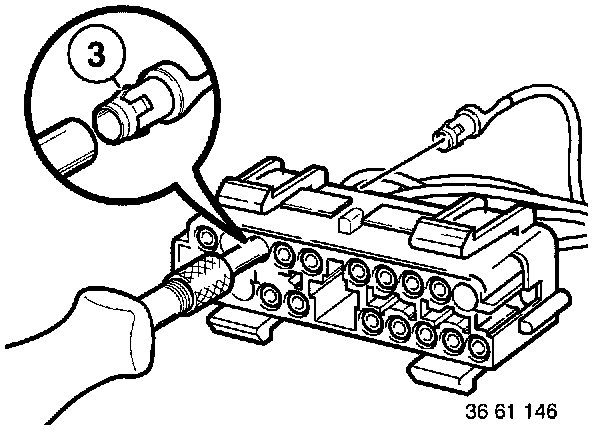

With special tool 61 1 132 (ejector), press back arrester hook (3) of appropriate contact and pull out cable.
