Fuel Filter: Service and Repair

Filter On Firewall Of Vehicle:




- Remove cover from fuel filter.

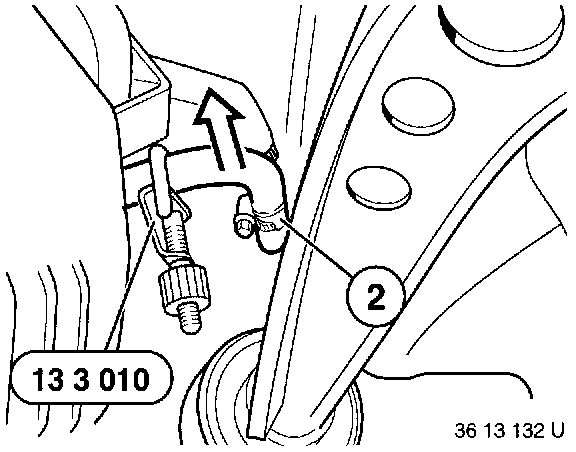

- Disconnect fuel delivery line with special tool 13 3 010 before and after the fuel filter.
- Unfasten hose clips and remove fuel line from fuel filter.

CAUTION: Catch and dispose of escaping fuel.

- Unfasten screw and remove filter from bracket.

Filter On Underbody Of Vehicle:

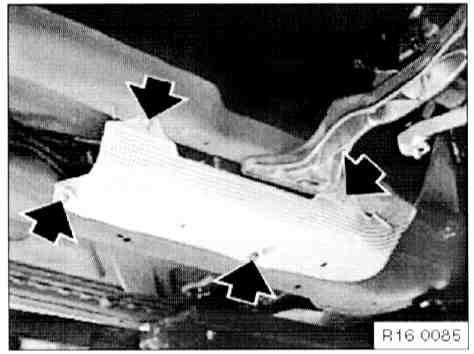

- Unfasten screws and remove cover from fuel filter.

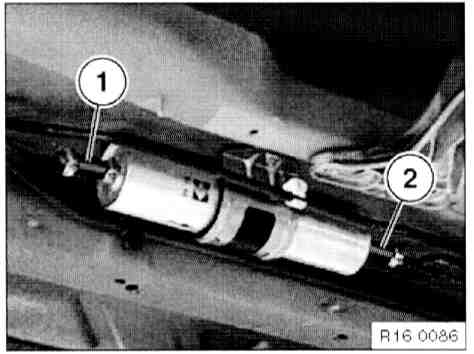

- Disconnect fuel inlet line at points (1) and (2) with special tool 13 3 010.
- Unfasten hose clips and remove fuel line from fuel filter.

CAUTION: Catch and dispose of escaping fuel.

- Unfasten screw and remove filter from bracket.

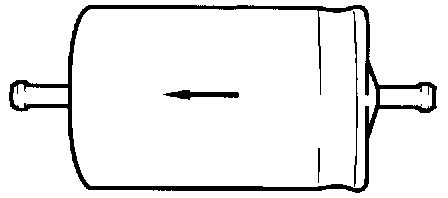

Installation Note: Check direction of flow (arrow).

- Arrow must point towards the injection valve strip.
