Pedal Lever

NOTE: Remove panelling for instrument panel.

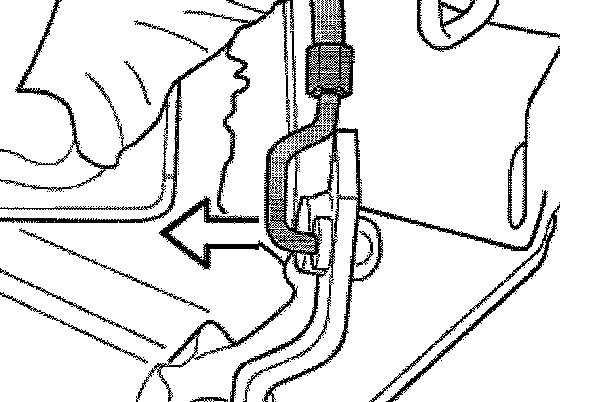

- Disconnect Bowden cable on accelerator-lever shaft.
- Installation:
Check rubber grommet, replacing if necessary.

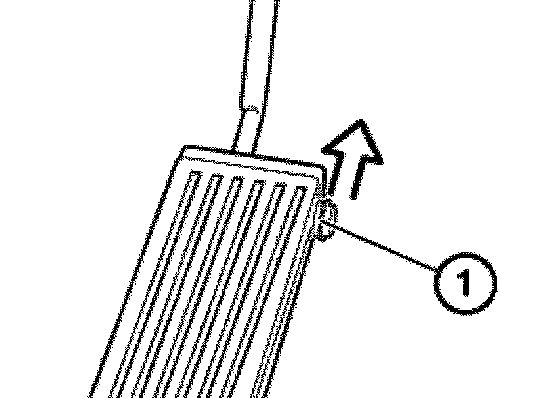

- Press off locking washer (1).
- Disconnect pedal.
- Installation:
Grease anti-friction faces. Fluid Type Specifications

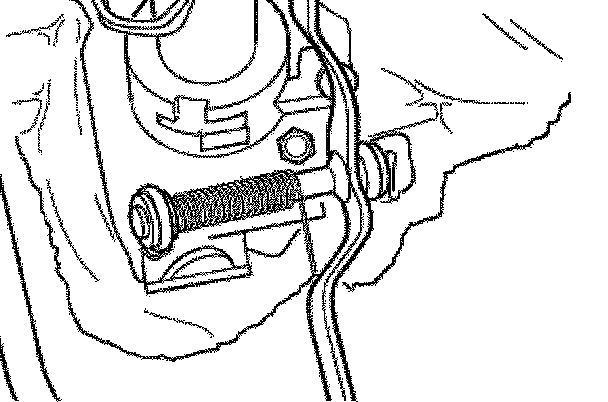

- Take off locking clip.
- Installation:

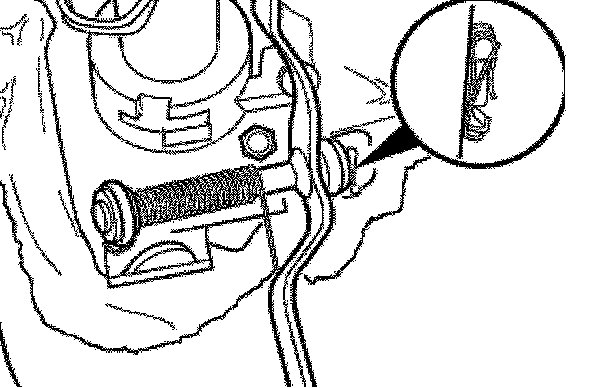

Check for correct seating of locking clip.

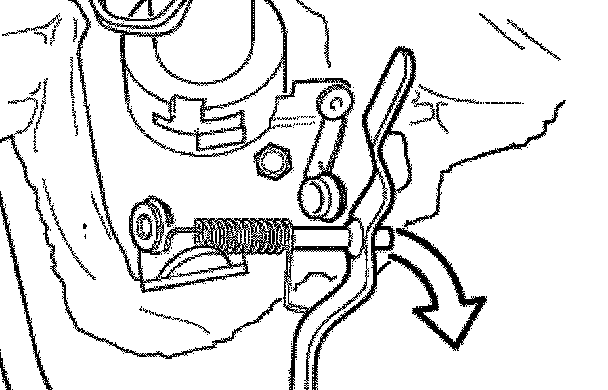

- Disconnect return spring.
- Slide accelerator-lever shaft to the left and remove.





- Installation:
Check for correct installation position of return spring.
