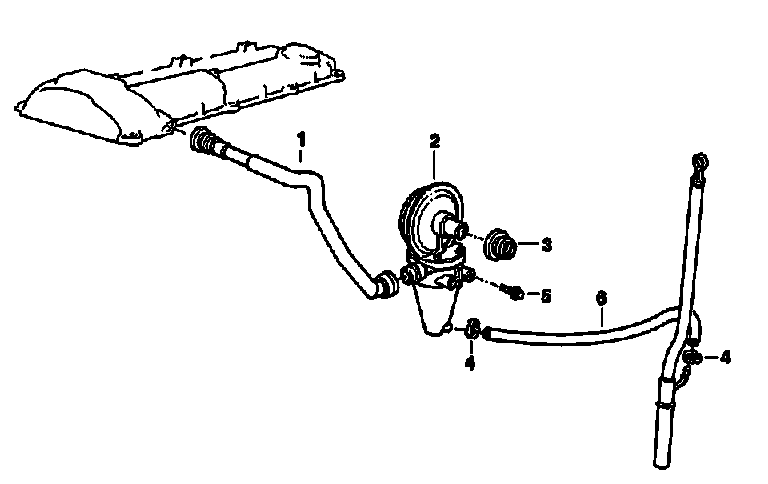

Positive Crankcase Ventilation: Locations

1. Vent pipe
2. Pressure regulating valve
3. Rubber grommet
4. Hose clamp
5. Hex bolt with washer
5. Vent hose
