Liquid Vapor Separator: Service and Repair

REMOVING AND INSTALLING/REPLACING EXPANSION TANK FOR TANK VENTILATION:

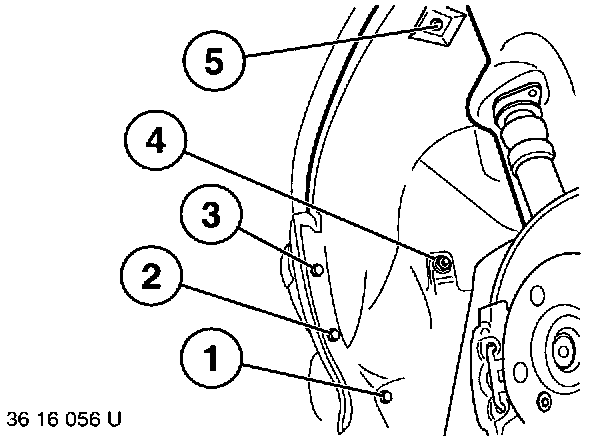

- Unfasten screws (1..3) and nuts (4 and 5).
- Remove rear right wheel trim.

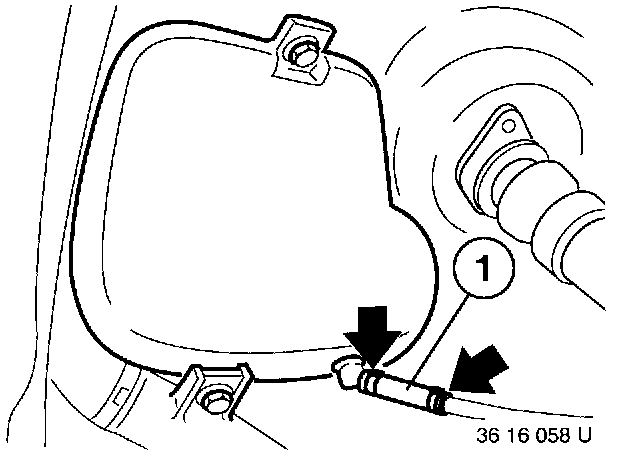

- Unfasten hose clips and remove hose (1).

Installation Note: Replace hose clips.

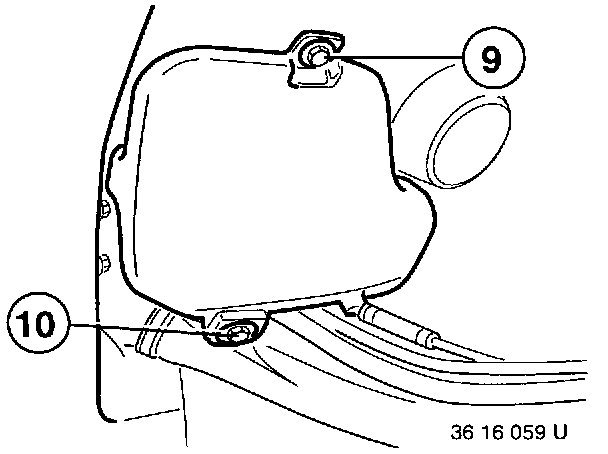

- Unfasten nuts (9 and 10).

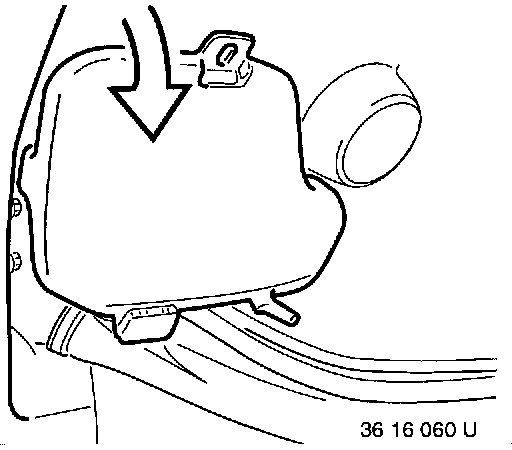

- Press back of expansion tank up and remove.

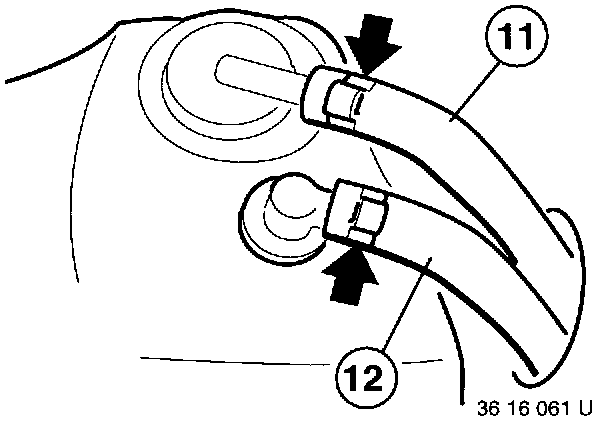

- Release hose clamps, withdraw hoses (11 and 12).

Installation Note: Replace hose clips.
