Evaporative Shut Valve: Service and Repair

- Remove luggage compartment mat and spare wheel.

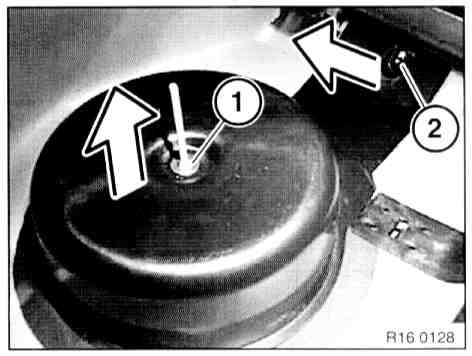

- Unfasten hexagon nut (1) and plastic nut (2). Take off cover for activated carbon canister upward.

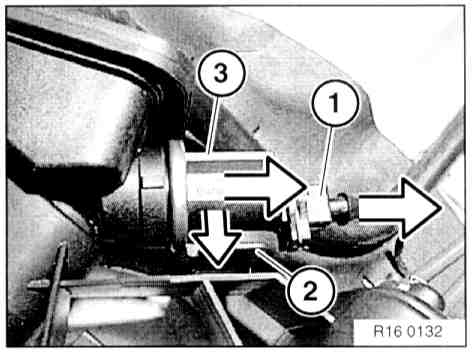

- Release plug connector (1) and pull off activated carbon canister non-return valve (3).
- Press detent (2) to side and pull activated carbon canister non-return valve (3) out of activated carbon canister.

Installation Note:
- Ensure proper locking of the plug connector.




Installation Note:

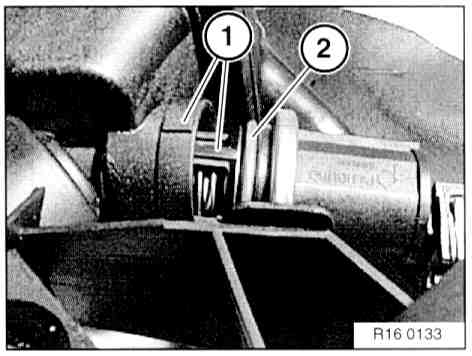

- Position marks (1) must be aligned when installing.
- Check sealing ring (2) for damage and proper seating.
