Hot Film Air Mass Meter and Throttle Position Sensor
Hot Film Air Mass Meter and Throttle Position Sensor

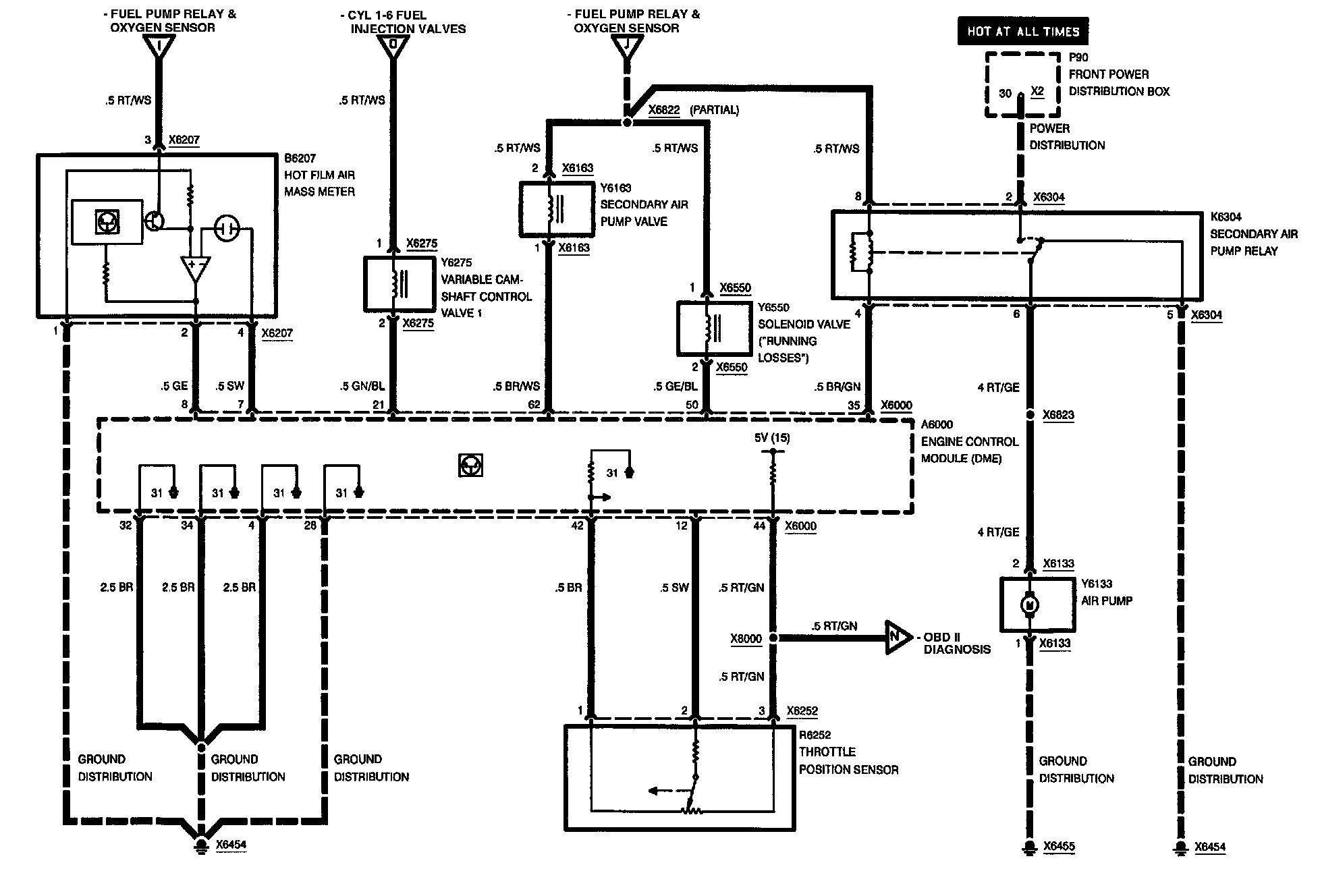

Engine Control System: Hot Film Air Mass Meter And Throttle Position Sensor:
