Oil Filter: Service and Repair

Removing intake air manifold, refer to Intake Manifold, Service and Repair.
Unfasten oil filter cover to allow oil to flow out of main flow oil filter housing and back into oil pan.
Removing alternator, refer to Starting and Charging, Charging System, Alternator, Service and Repair.
Unfasten vane pump for power steering unit and tie up to one side (lines remain connected).
If necessary, remove alternator drive belt, refer to Drive Belts, Mounts, Brackets and Accessories, Drive Belt, Service and Repair.

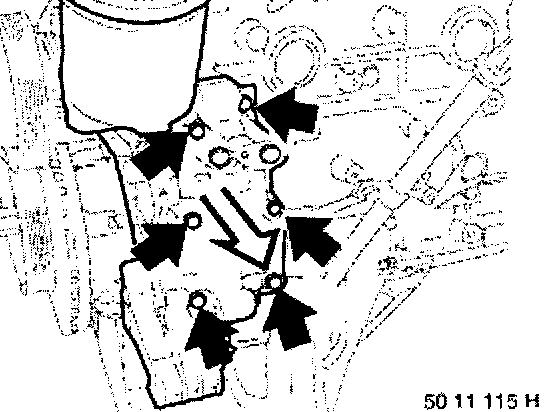

Remove connector for oil pressure switch.
Unfasten screws and remove complete full-flow oil filter.





Installation:

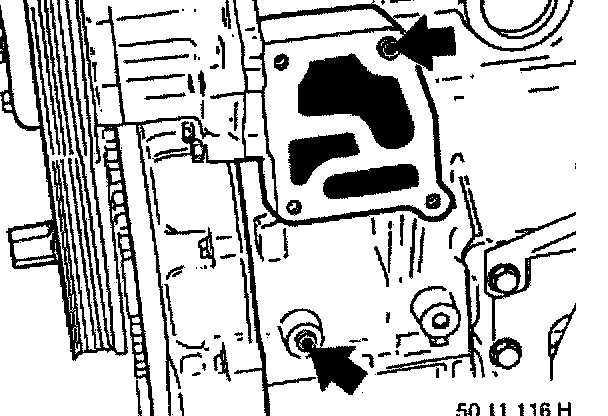

Check dowel sleeves.





Installation:

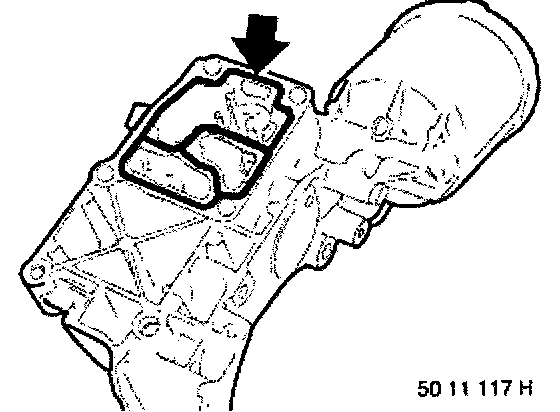

Replace seal.
Top up engine oil.
