Removing and Installing Front Turn Indicator Lights Complete

Removing and Installing Left or Right Front Turn-Indicator Lights (Complete)







1. Lever out retaining clip from top and pull turn-indicator light forwards.
2. Unlock and take off bulb holder.


Caution! Only take hold of bulb on base or on glass of bulb with a clean cloth or packaging of bulb.







Installation note:

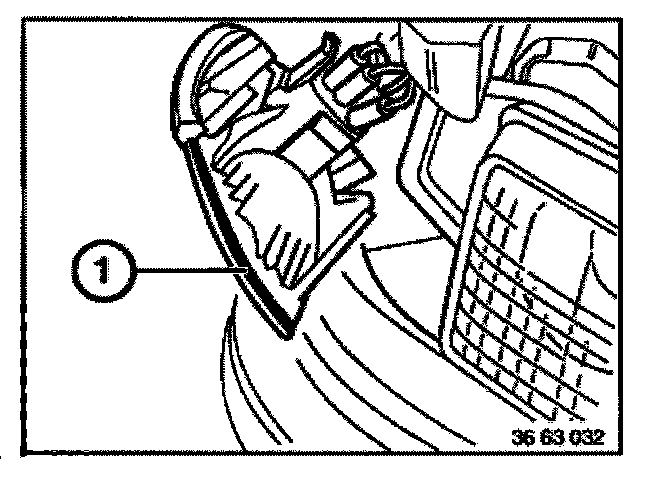

If applicable, clean hollow throat (1) and affix a foam- rubber strip (approx. 5 mm wide).
