Parking Light Bulb: Service and Repair

Replacing Bulb For Left or Right Front Parking Light

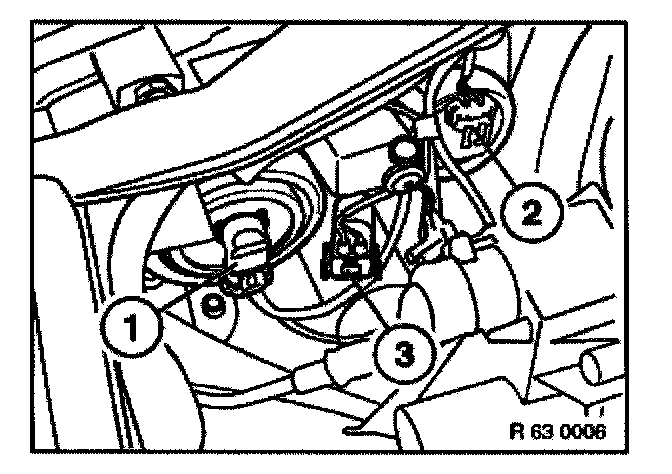

Sedan, Coupe, Convertible
Press down on clip and take off bulb cover. Pull out bulb holder. Twist and pull out bulb.
1. Low beam
2. High-beam
3. Parking light


Caution! Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb.

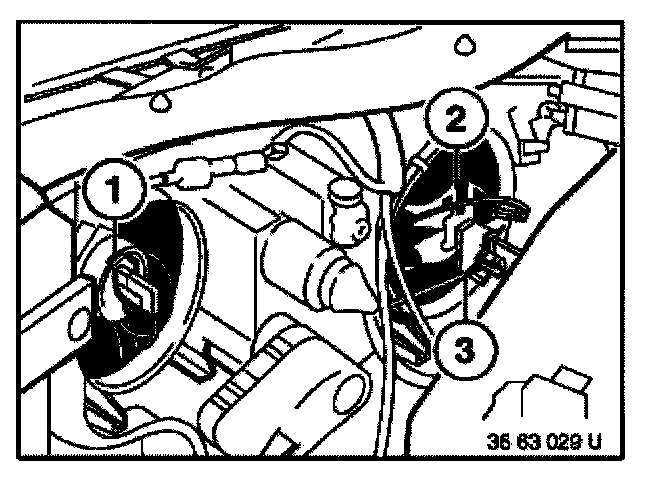

Compact / Roadster
Twist light bracket (3) counterclockwise and remove. Remove bulb.
1. Low beam
2. High-beam
3. Parking light

Caution! Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb.
