Headlamp Alignment Actuator: Service and Repair

Removing and Installing or Replacing Vertical Headlight-Range Adjuster

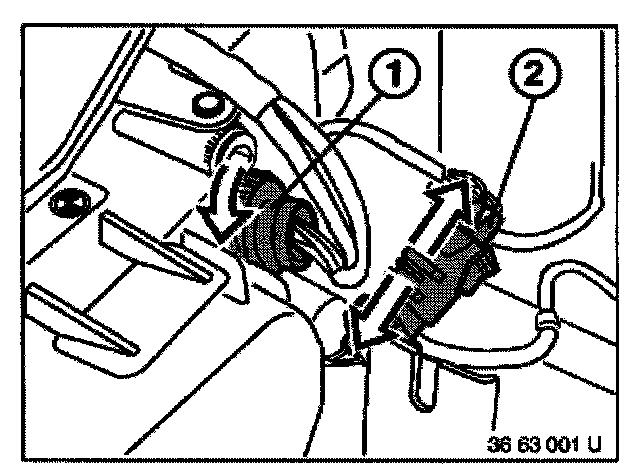

Disconnect plug-in connection (2).

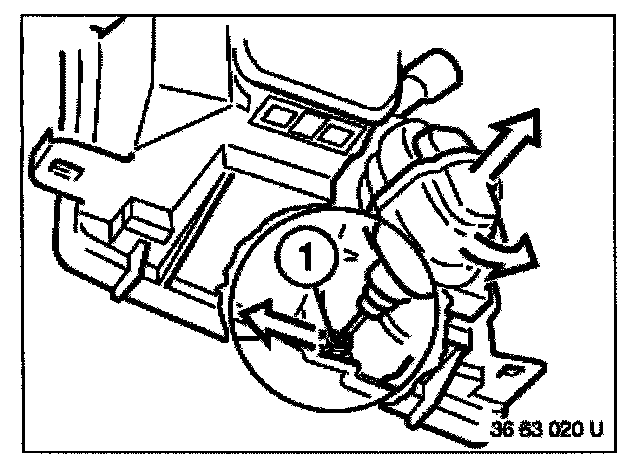

ZKW headlights:
Rotate vertical aim adjuster approx. 45 ° and lever ball pin (1) laterally out of bracket.

Note: Headlight remains installed and is only shown removed for better demonstration.

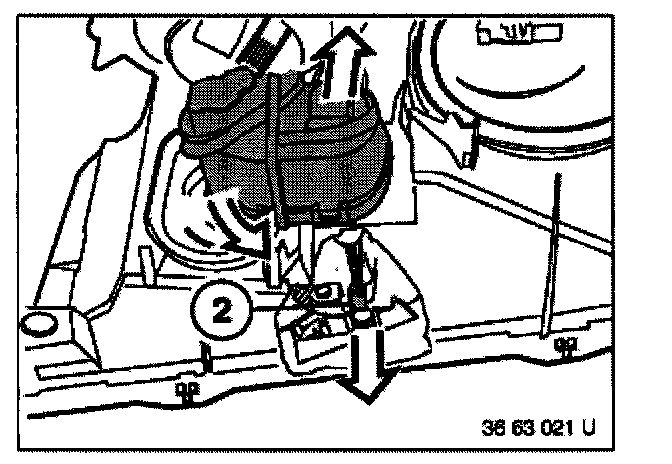

Bosch headlights:
Rotate vertical aim adjuster approx. 45 ° and lever ball pin (2) downwards out of bracket.


Note: Headlight remains installed and is only shown removed for better demonstration.
