Fog/Driving Lamp: Adjustments

Note test prerequisites. Refer to Test Requirements. Adjustments
Adjustment dimension (e) for foglights is 20 cm.

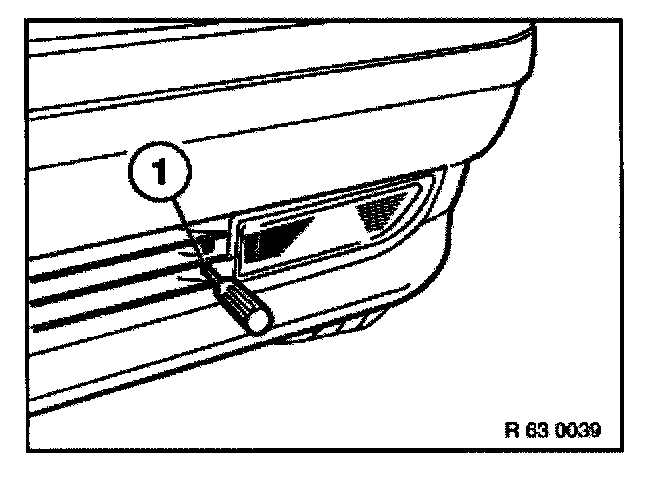

Adjust height of foglights on adjusting screw (1) through lower aperture.
