Sub-System Diagrams

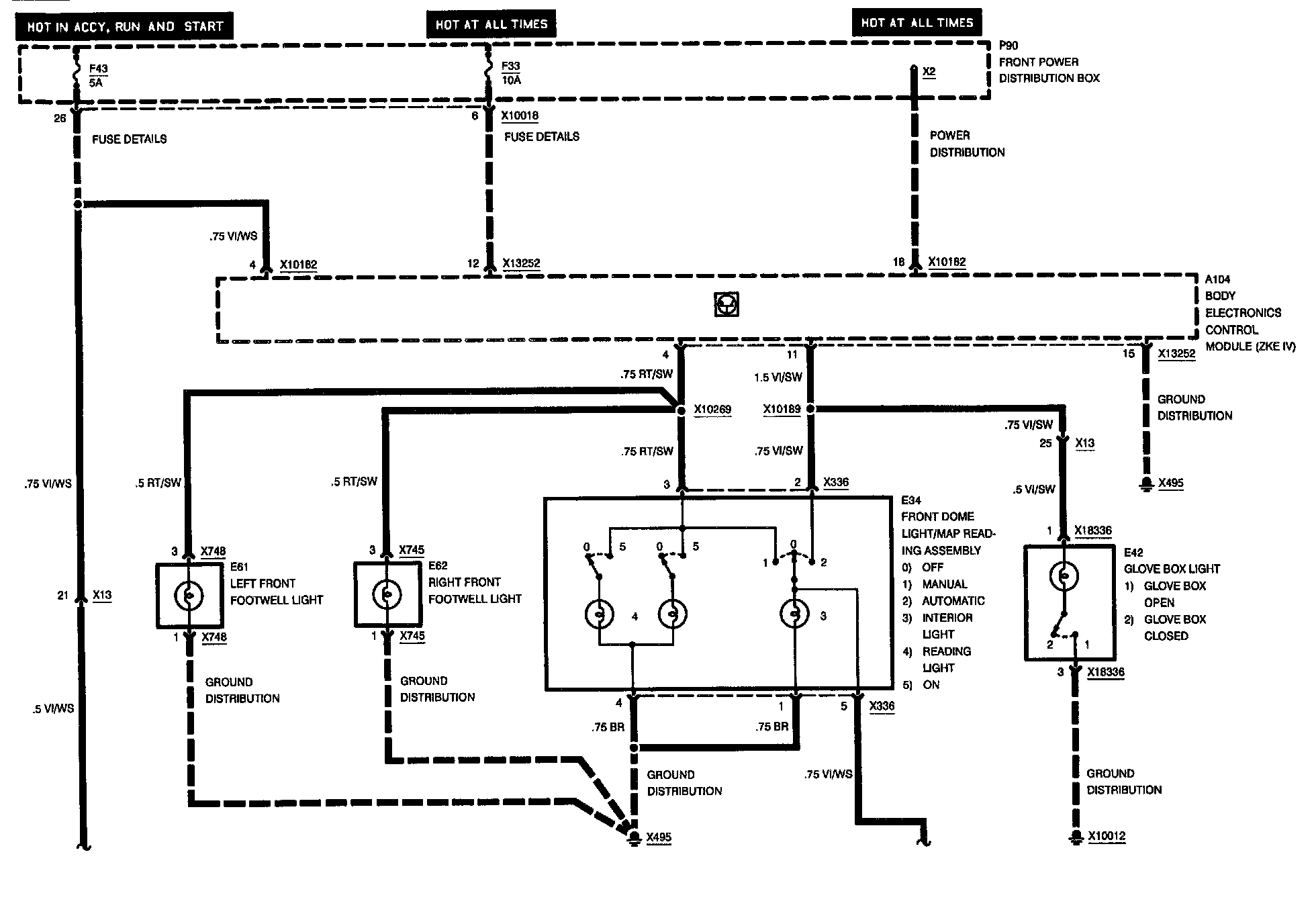

Interior Lights: Sub-System Diagrams (Part 1 Of 2):

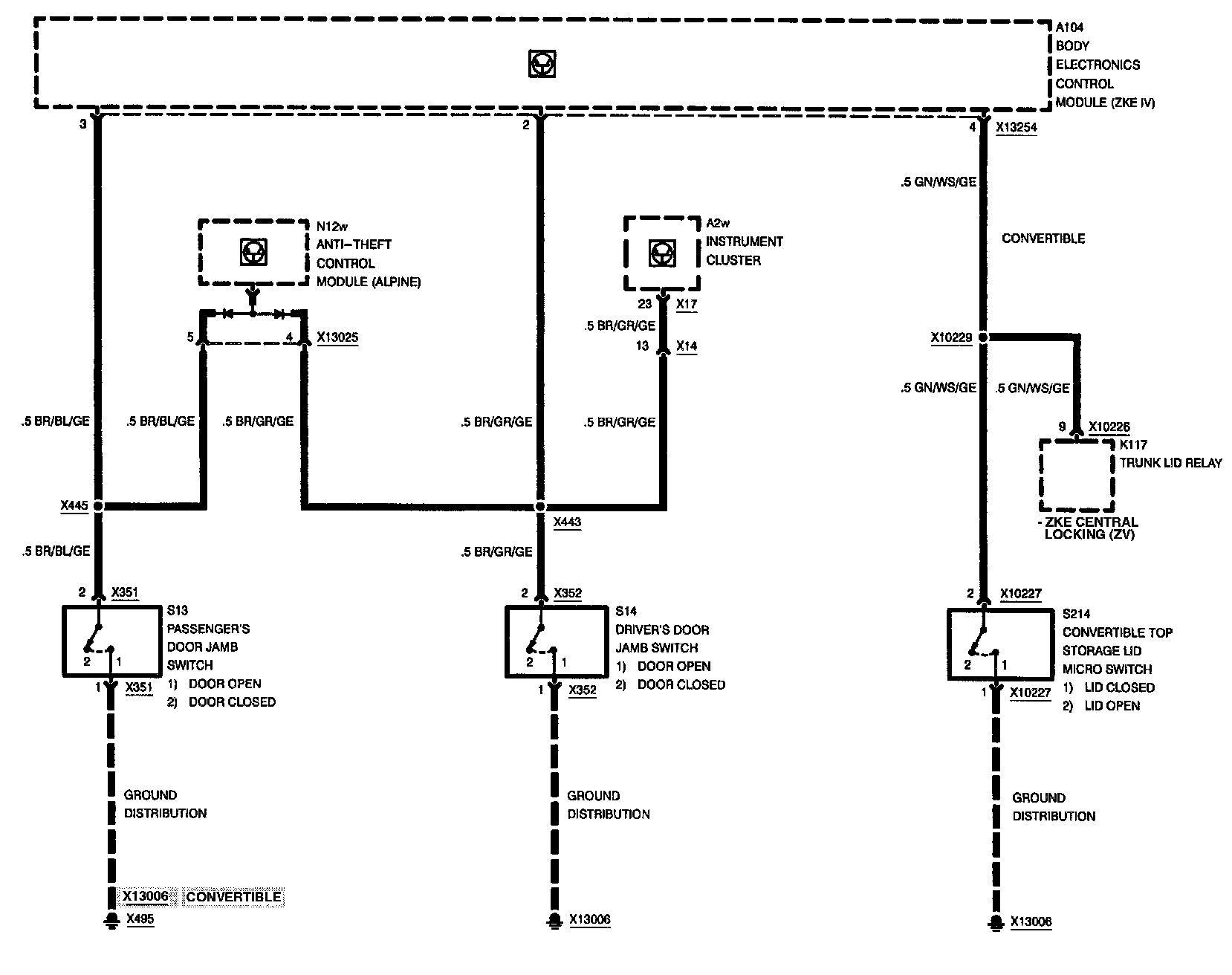

Interior Lights: Sub-System Diagrams (Part 2 Of 2):

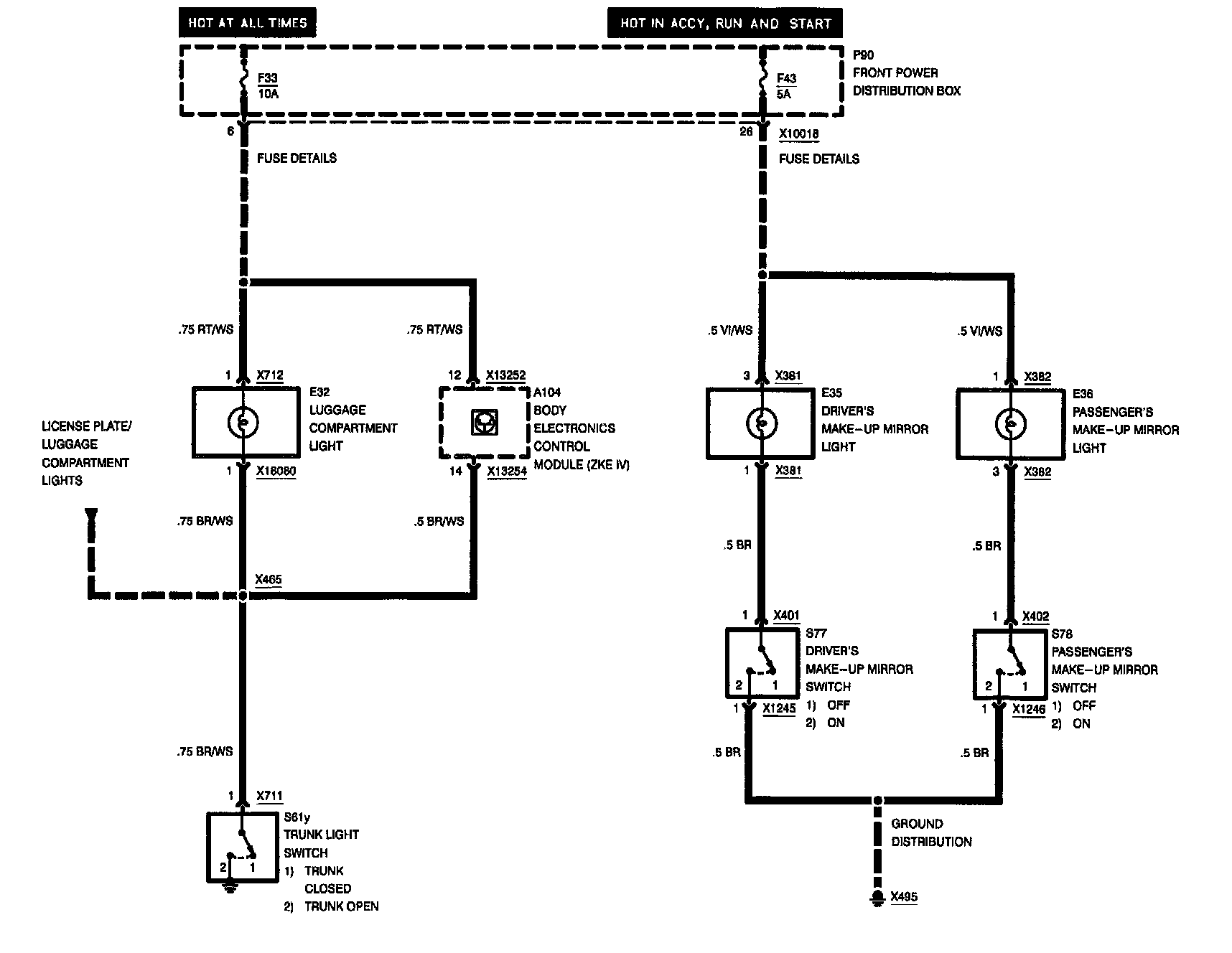

Interior Lights: Sub-System Diagrams (Part 1 Of 2):

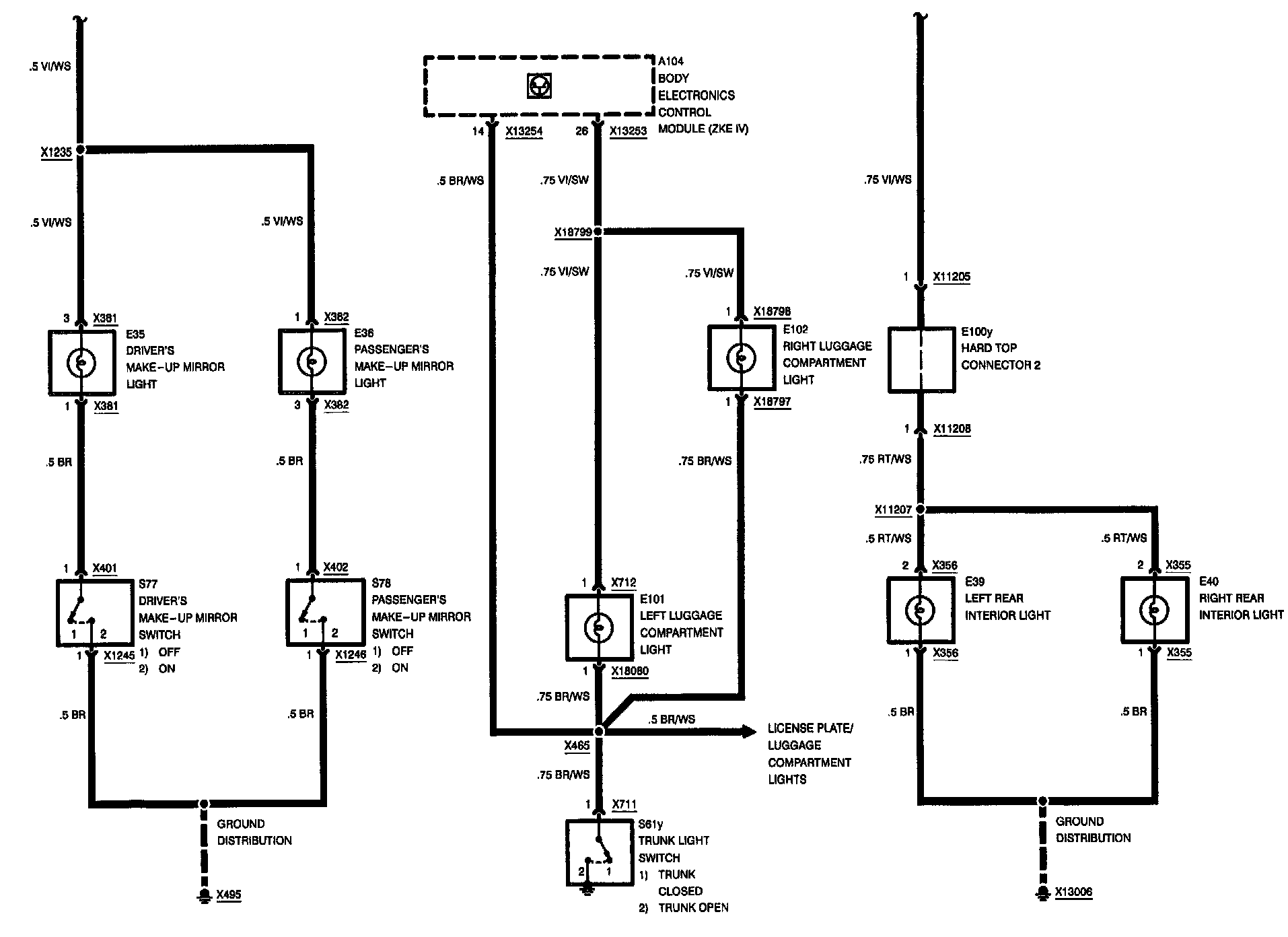

Interior Lights: Sub-System Diagrams (Part 2 Of 2):
