Speedometer Head: Service and Repair

Removing and Installing or Speedometer Display Sensor







Disconnect plug-in connection at rear axle.

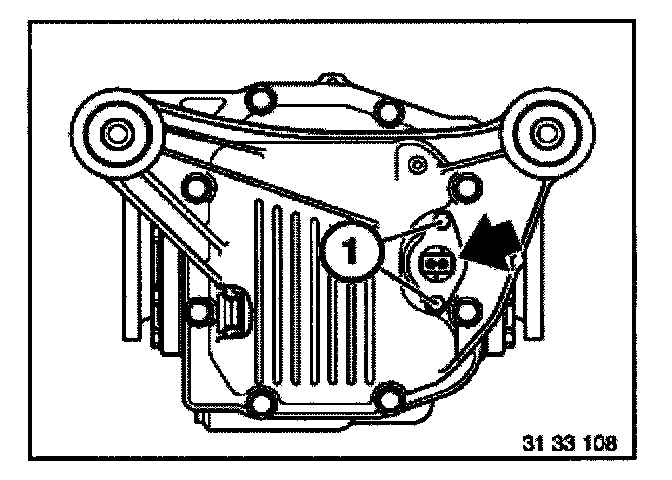

Unfasten screws (1) and remove speedometer-display sensor.







Installation note:

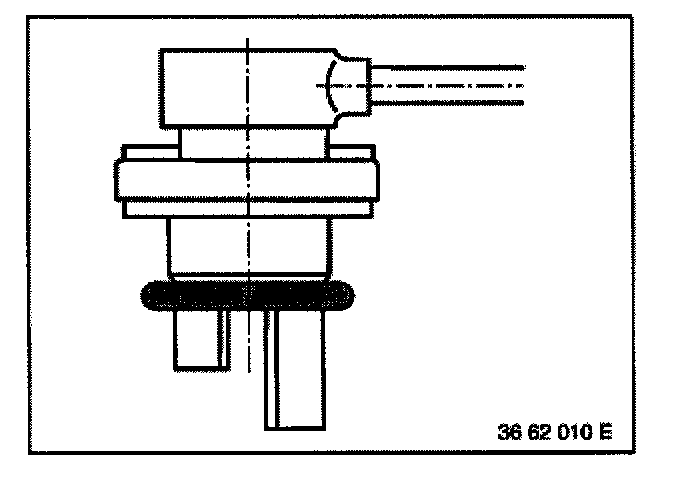

Replace O-ring and coat with HLS-90 oil. Slide O-ring onto speedometer-sensor shaft as far as slip phase (A). Install sensor with O-ring in rear axle and tighten both screws uniformly.
