Clock: Service and Repair

Removing and Installing/Replacing Clock







Analog clock only:

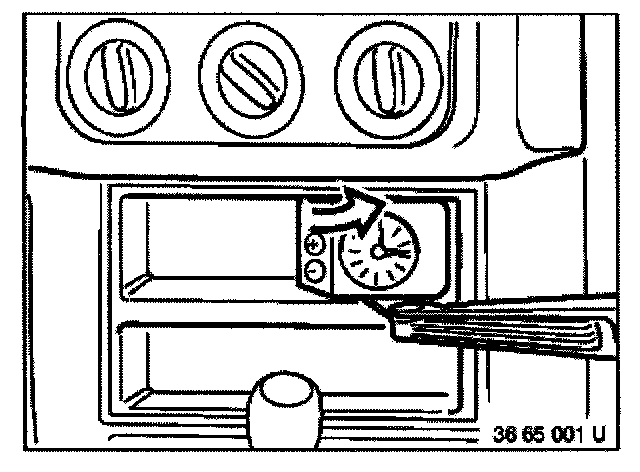

Insert a feeler gauge approx. 0.9 to 1 mm thick at bottom between clock and frame, lever out clock and disconnect plug.

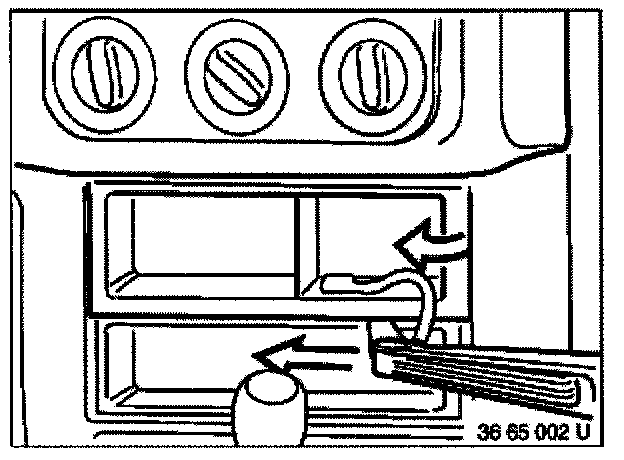

Insert a feeler gauge on right between frame and lower tray. Starting on right, lever out frame while dragging feeler gauge towards left.












Digital clock only:

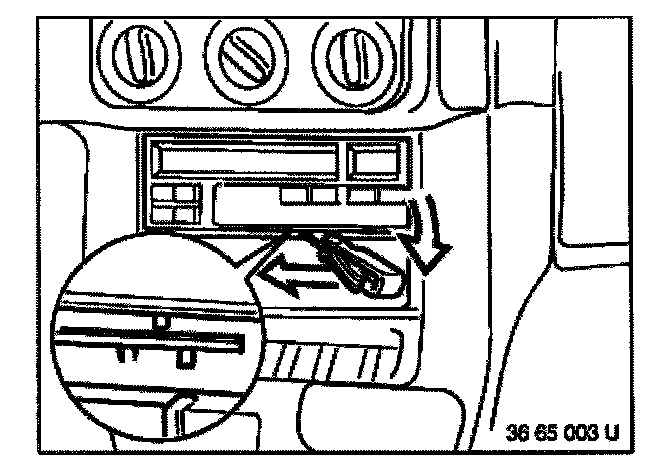

Insert a feeler gauge approx. 0.9 to 1 mm thick between frame and lower tray. Starting from right side, press down locking lever and lever out display unit.

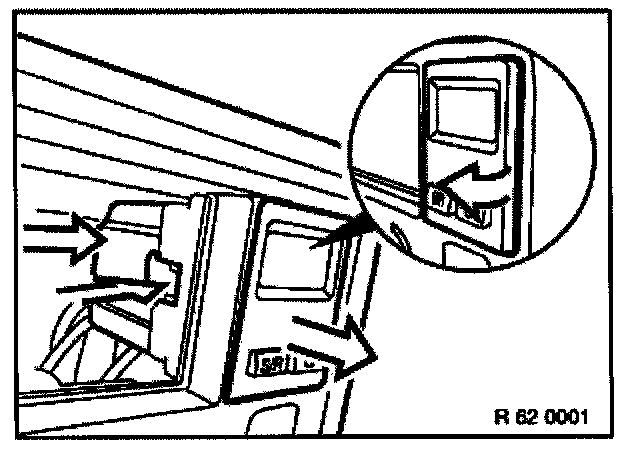

Pull off connectors.
