Cigarette Lighter: Service and Repair

Replacing Insert Holder For Cigarette Lighter




Smoker pack

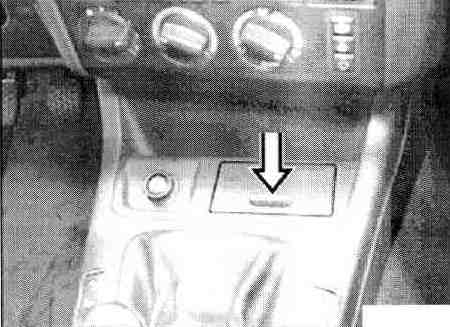

- Open cover for ashtray.

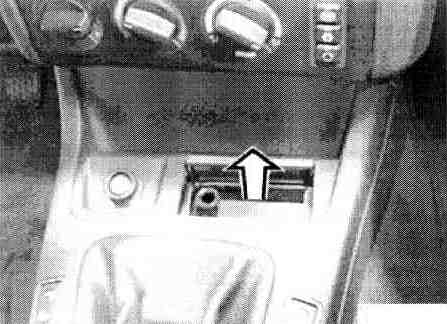

- Remove ashtray insert by pulling straight out.




Non-smoker pack

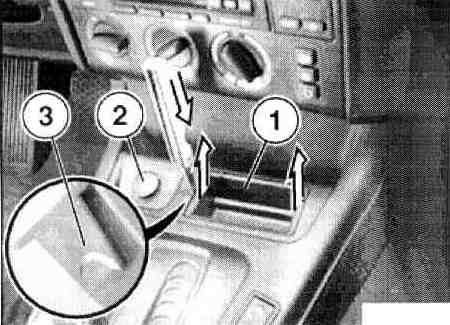

- With a feeler gauge between storage shelf (1) and cigarette lighter (2), unlock clip (3) and remove storage shelf (1) by pulling straight out.




Installation:

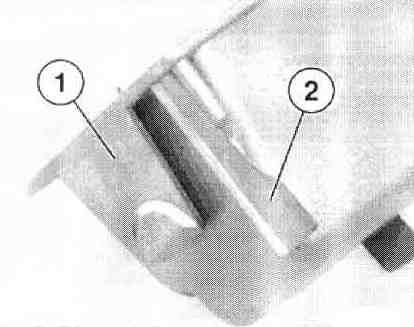

- Install storage shelf with wide clip (1) pointing to cigarette lighter. In so doing check that guide (2) fits in opening.

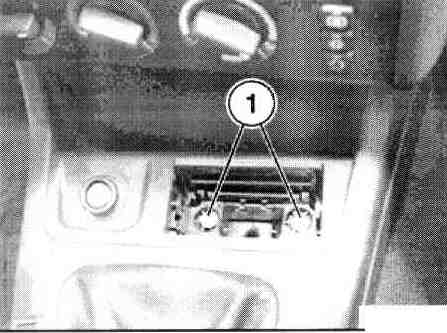

- Unscrew bolts (1).

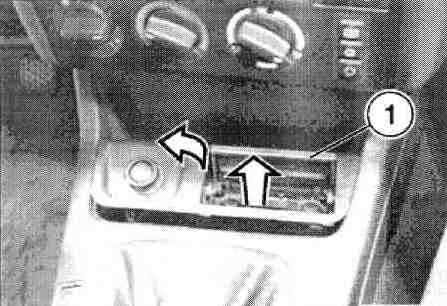

- First slide trim (1) forward and then pull upwards to remove.




Installation
- Slide lugs (1) under center console.




- Disconnect all plug connections and remove trim.




Smoker pack only

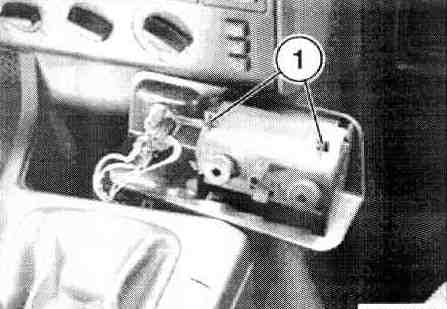

- Unclip socket (1) for ashtray light.

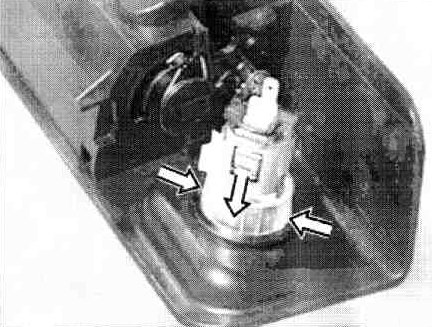

- Press in clips on left and right of lighting rign and press out insert holder with lighting ring.
