Replacement

Replacing Drier Bottle For Air-Conditioning System

Refrigerant suction drained from the air conditioner.

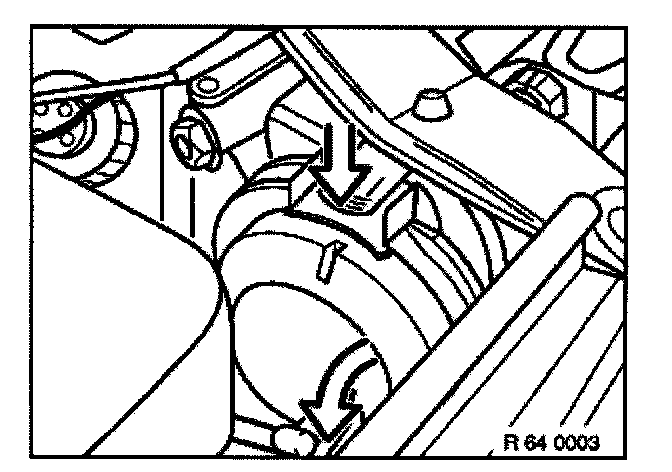

Removing right headlight vertical aim adjuster.

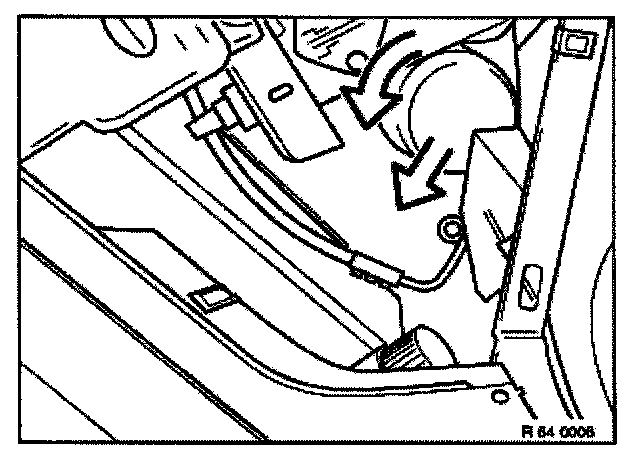

Press clip down and remove cover for right-hand driving light.

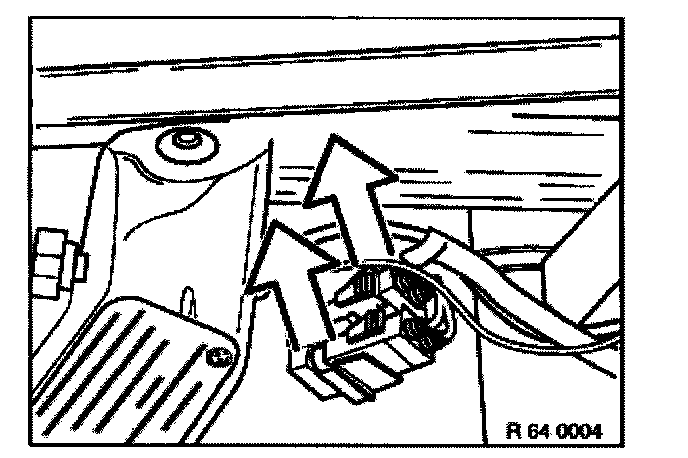

Unclip plug-in connections from bracket and separate.

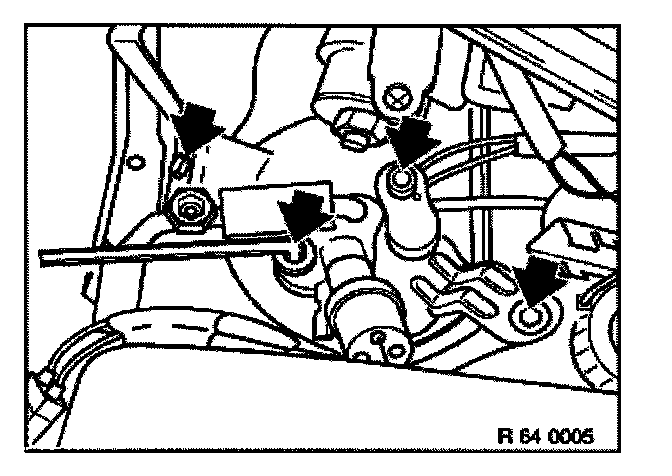

Loosen screws, take off pipes and fit with plugs immediately.

Installation note:
Replace O-rings.

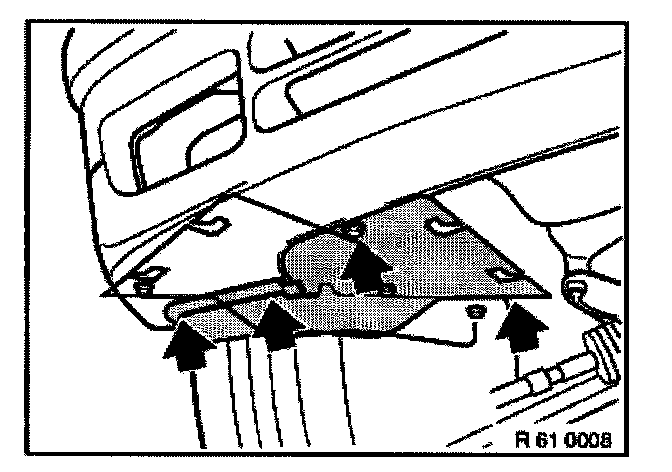

Unscrew and remove bracket from underbody protection.

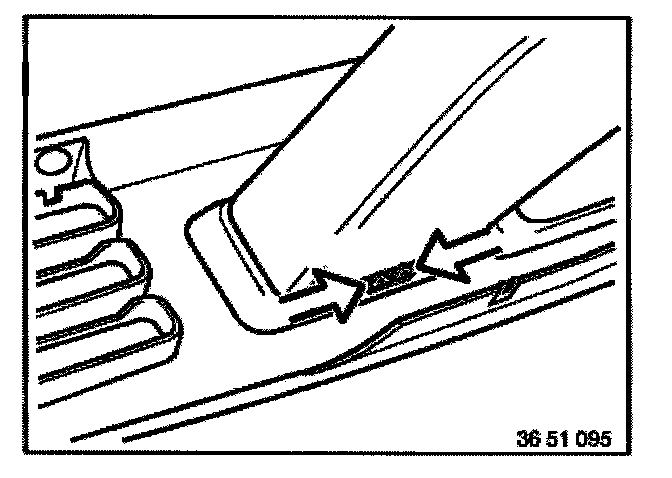

If fitted: Unclip thermostatic switch.

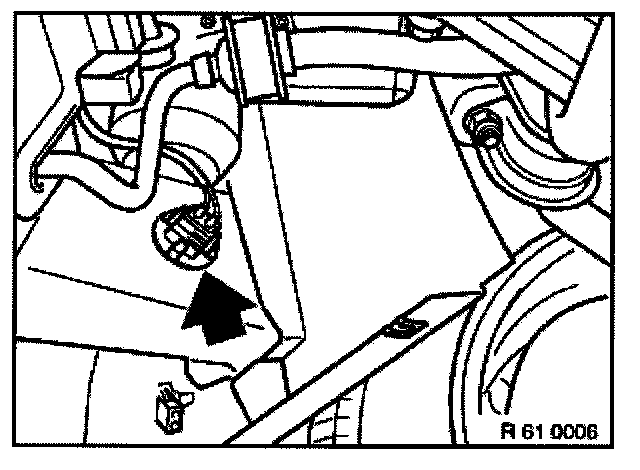

Remove the right-hand air duct for brake ventilation.







Twist the drier bottle and remove it by pulling it down.

Installation note:
Remove the plugs from the ports only immediately before you connect the lines.
