Control Assembly Removal
>>
With IHKA
With IHKA
Removing/Installing All Controls For Automatic Air Conditioning System
Partially remove clock.

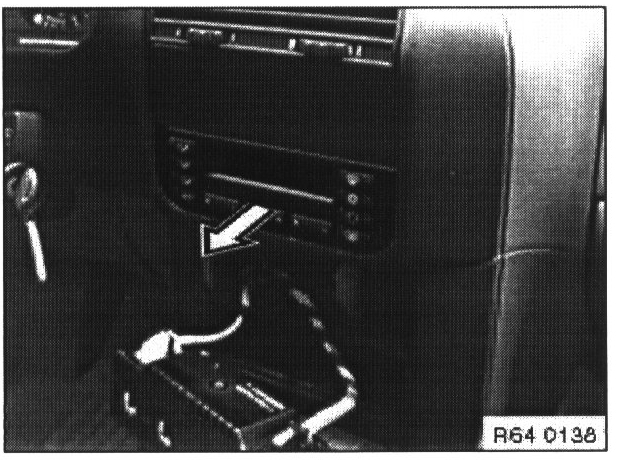

Press controls out through clock aperture.

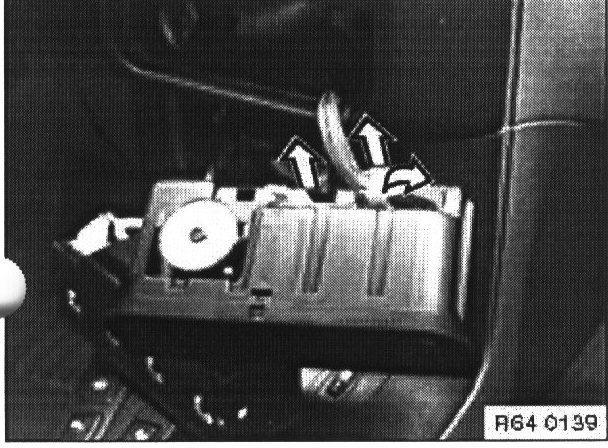

Remove connector and lift out controls.
