Condenser HVAC: Service and Repair

Replacing Condenser

Remove bumper.
Remove center left front radiator grill.
Refrigerant suction drained from the air conditioner.
Remove complete [1][2]auxiliary fan.

If necessary, replace drier bottle.

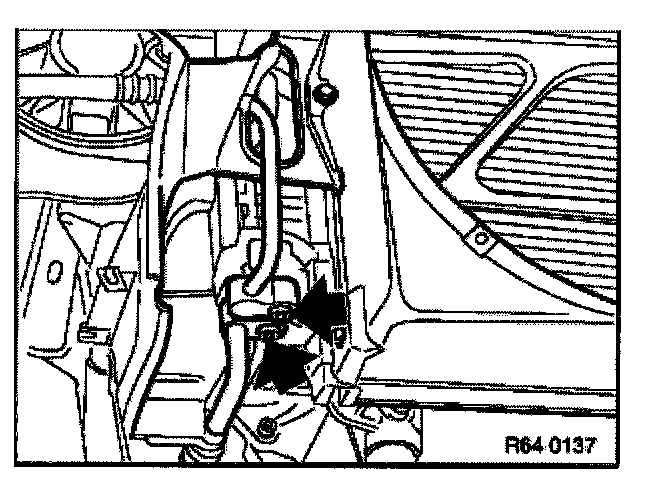

Disconnect lines from condenser.

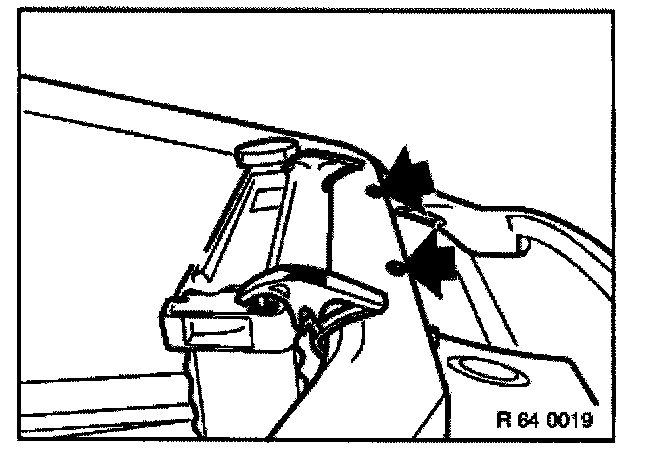

Unfasten screws, lift off condenser and pull downwards to remove.
