Heater Microfilter

Replacing Microfilter For Heater




- Pull off rubber part and pry out grill.




- Remove screws from cable channel.




- Remove screws on right-hand side and take off holder.




- Remove screw on left side and pull out air collector in upwards direction.


NOTE: Air collector will be difficult to pull out.

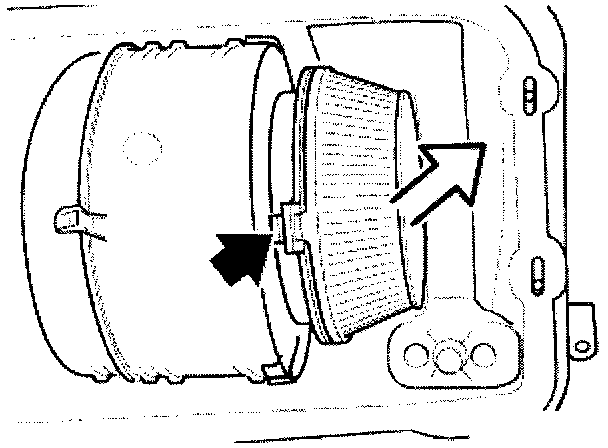

- Unclip microfilters at left and right sides and lift them out.


NOTE: On M50 engines the filters must be squeezed together while removing.
