Air Conditioning Microfilter

Replacing Micro-filter For Integrated Heater/Air-Conditioning System

- Remove glove box.

- Remove RH lower trim panel.





- Unclip air duct for the footwell and lift it out.

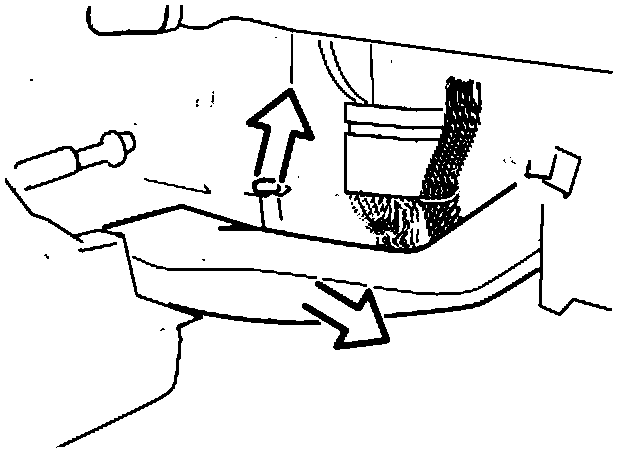

- Remove screws and tilt the control unit holder in downwards direction.

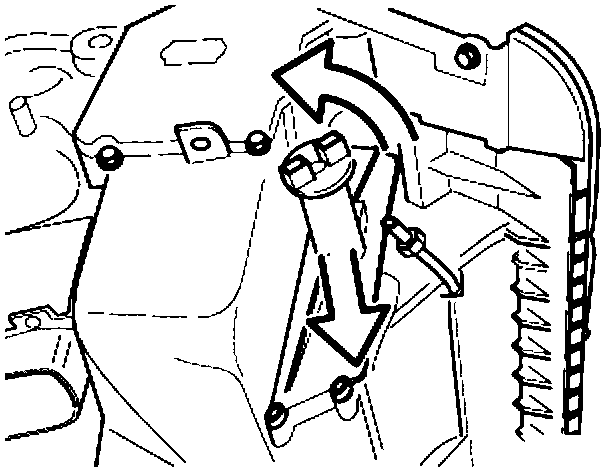

- Turn lock about 45° and remove cover.





- Pull micro-filter out.

- Install in reverse order.
