Without Air Conditioning

Removing and Installing or Replacing Fan for Heating Unit (M50, S50, M52)





- Pull off rubber part and pry out grill.





- Remove screws from cable channel.





- Remove screws on right-hand side and take off holder.





- Remove screw on left side and pull out air collector in upwards direction.

Note:
Air collector will be difficult to pull out.





M50, M52
Unclip covers.
Unscrew bolts.
Remove cover of injection-valve plate.





- Unclip covers and remove screws.





- Remove cover.





S50
Unfasten screws and remove cover.





- Remove screws and tilt electric-lead cover in forwards direction.

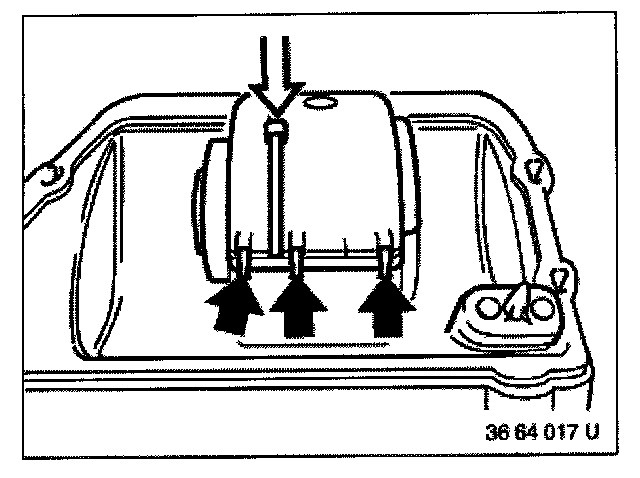

- Loosen clips and take off motor cover.

Note: Shown on removed model.

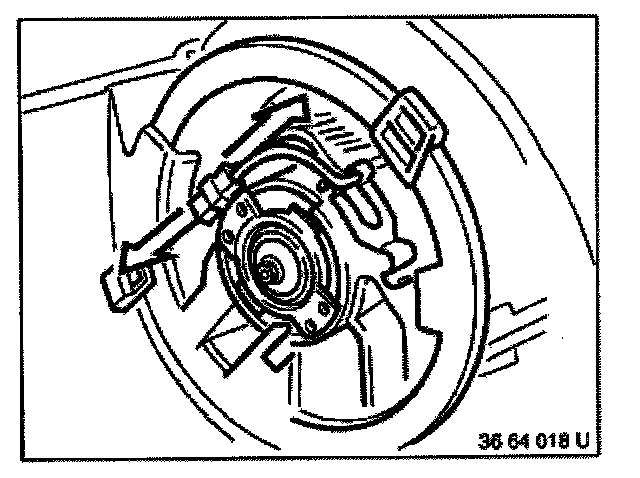

- Pull off connectors.

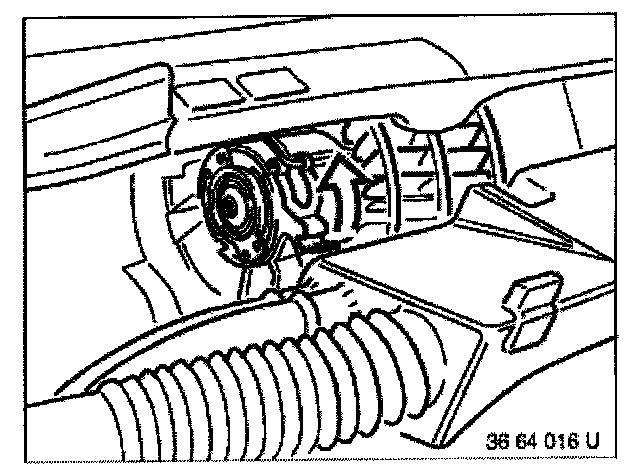

- Loosen clamp and lift out motor.
