Blower Motor Resistor: Service and Repair

Note: Only the Heater Only (HS) uses Blower Motor Resistors (R11), the IHKA uses a Final Stage Unit (N2).

Remove lower left trim panel from instrument panel.
Remove knee protector (USA only).

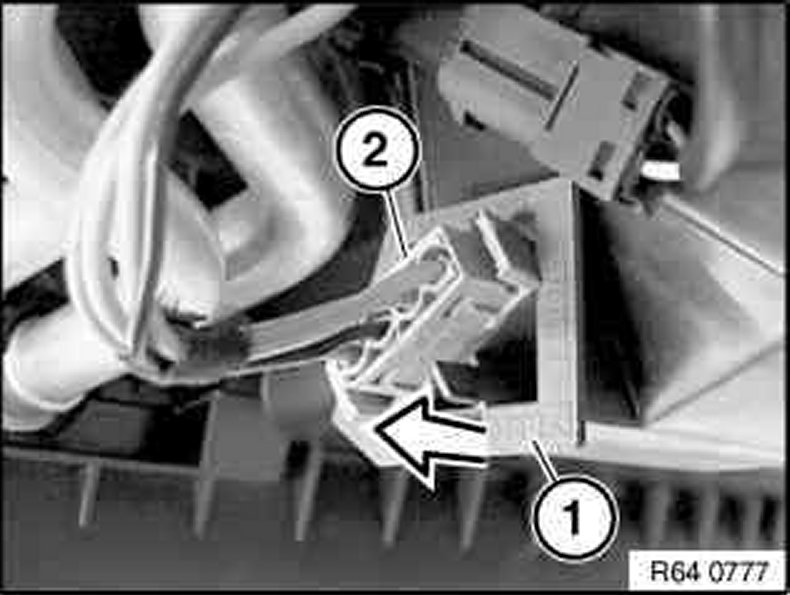

Disconnect connector (2).
Pull out resistor for heater - A/C fan (1) in direction of arrow (as shown) and remove.
