Engine Removed

(engine removed)
Secure engine to assembly frame.
This task is described in the section dealing with removal and installation of cylinder head, refer to Cylinder Head, Service and Repair.
Drain engine oil.
Unfasten oil pan screws on transmission end.





Unfasten oil pan screws on engine and lift off oil pan.





Installation: Sealing faces clean and free of seal debris.
Check seal, replace if necessary.

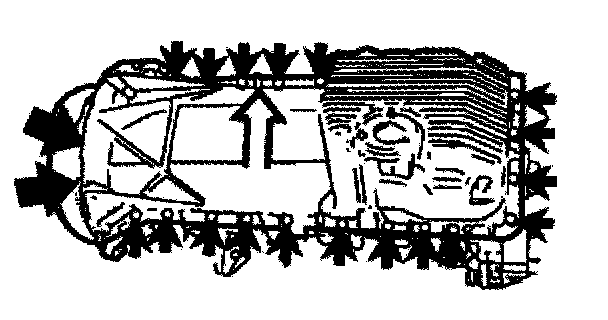

Apply Drei Bond 1209 sealing compound to area around joint (or equivalent): approx. 3 mm wide and 2 mm high

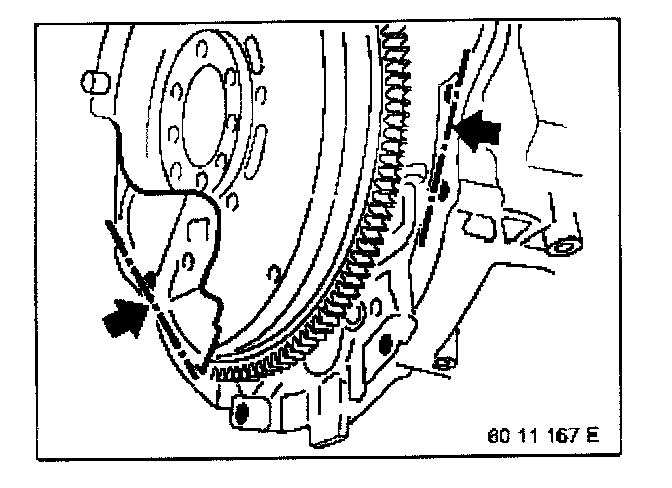

Installation: To prevent any possibility of torsion stress during subsequent transmission assembly, align oil pan flush with side of transmission.
