Drive Belt Tensioner: Service and Repair

Remove alternator drive belt, refer to Drive Belt, Service and Repair.





Note:

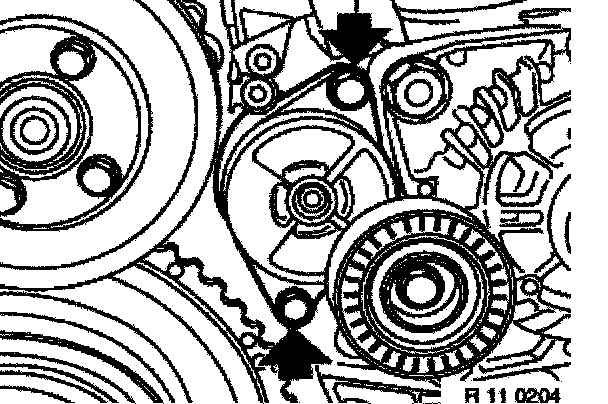

^ Version with auxiliary tensioning roller:
^ Remove auxiliary tensioning roller.

Installation:

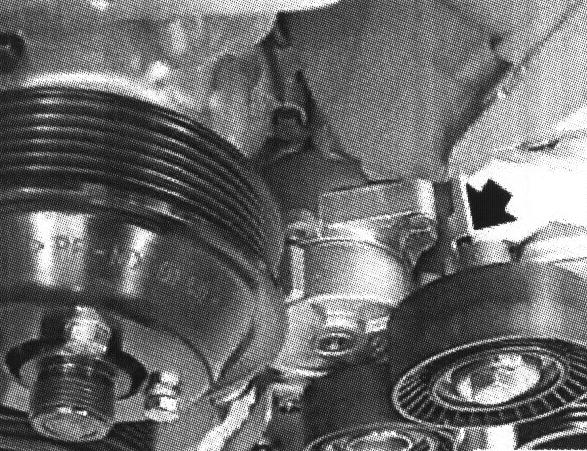

The locking device on the auxiliary tensioning roller must engage in the groove of the alternator.





Unfasten screws on tensioner for alternator drive belt.
