Valve Guide: Testing and Inspection

(Valve removed)

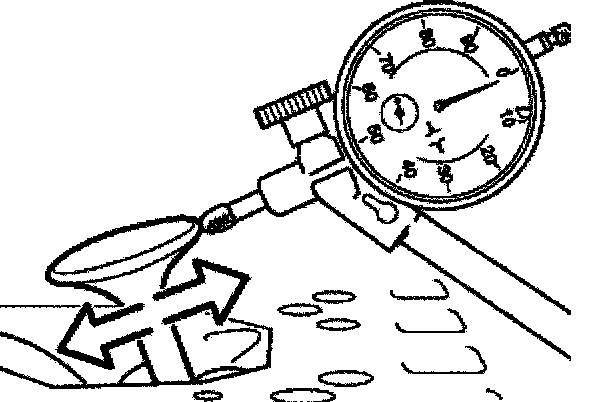

To measure tilt clearance, insert new valve so that valve stem end is flush with valve guide.
Mount dial gauge and measure tilt clearance.

Note: Max. permissible tilt clearance, refer to Engine, Specifications.

Note: If tilt clearance is excessive, valve guide is reamed out and a repair valve with a larger shaft diameter is installed.

If necessary, ream out valve guide, refer to Service and Repair.
