Trailer Hitch
Trailer Hitch

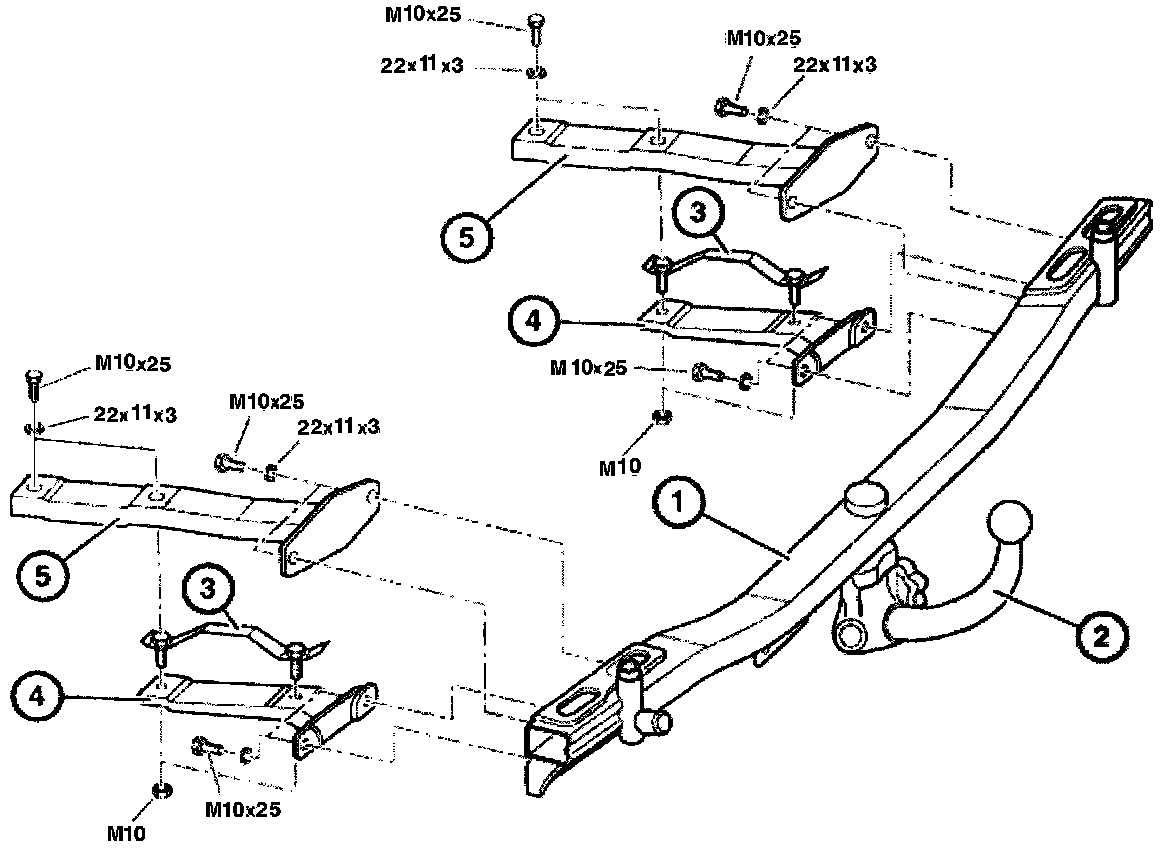

Configuration of Towbar Coupling
1.
Trailer tow hitch
2.
Ball rod
3
Holder
4.
Reinforcement bracket
5.
Axal strut
