Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Bumper >> System Diagram

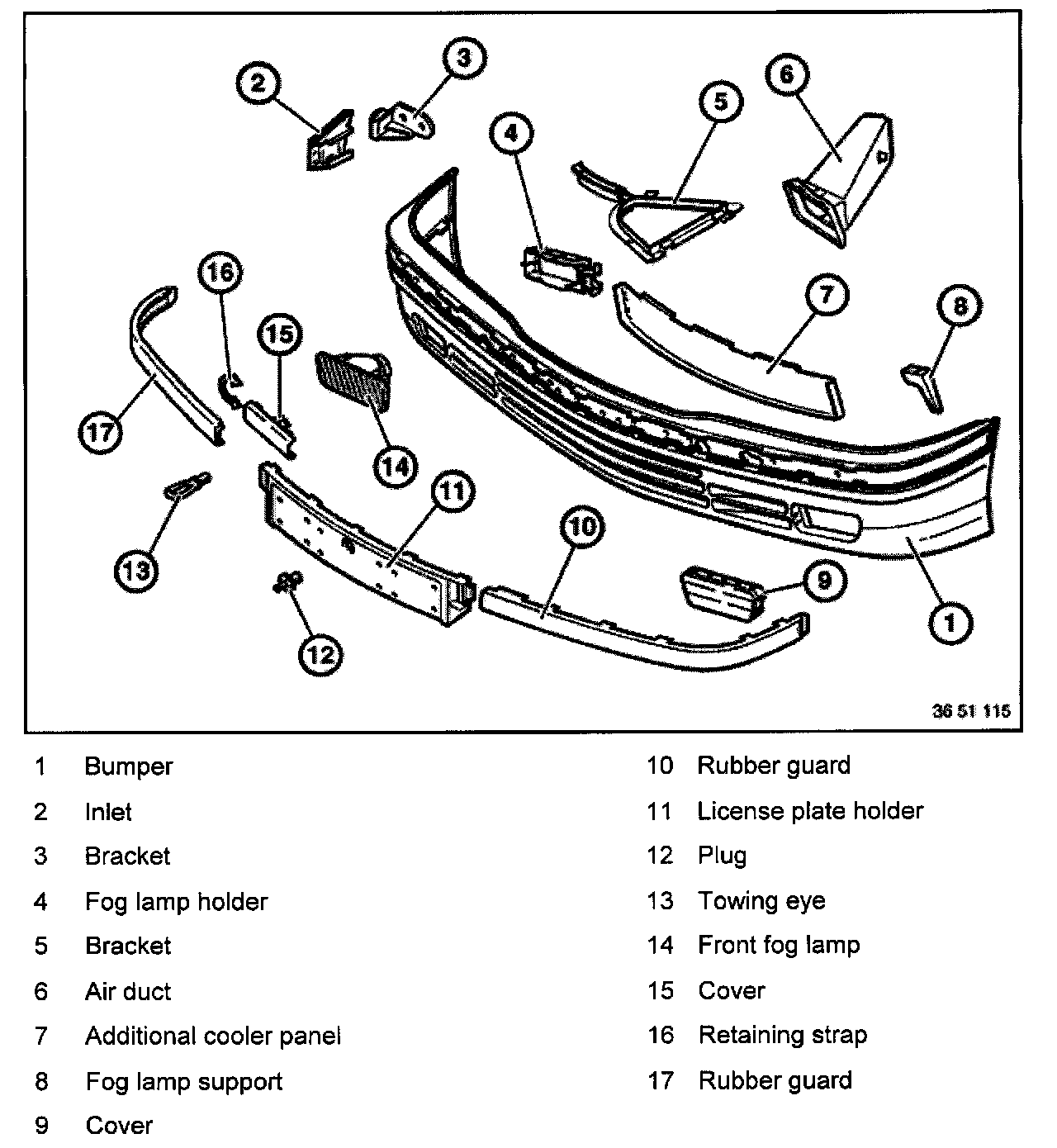

System Diagram




Survey Of Front Bumper


Survey Of Front Bumper:
