Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Bumper >> Front Bumper Bracket

Front Bumper Bracket

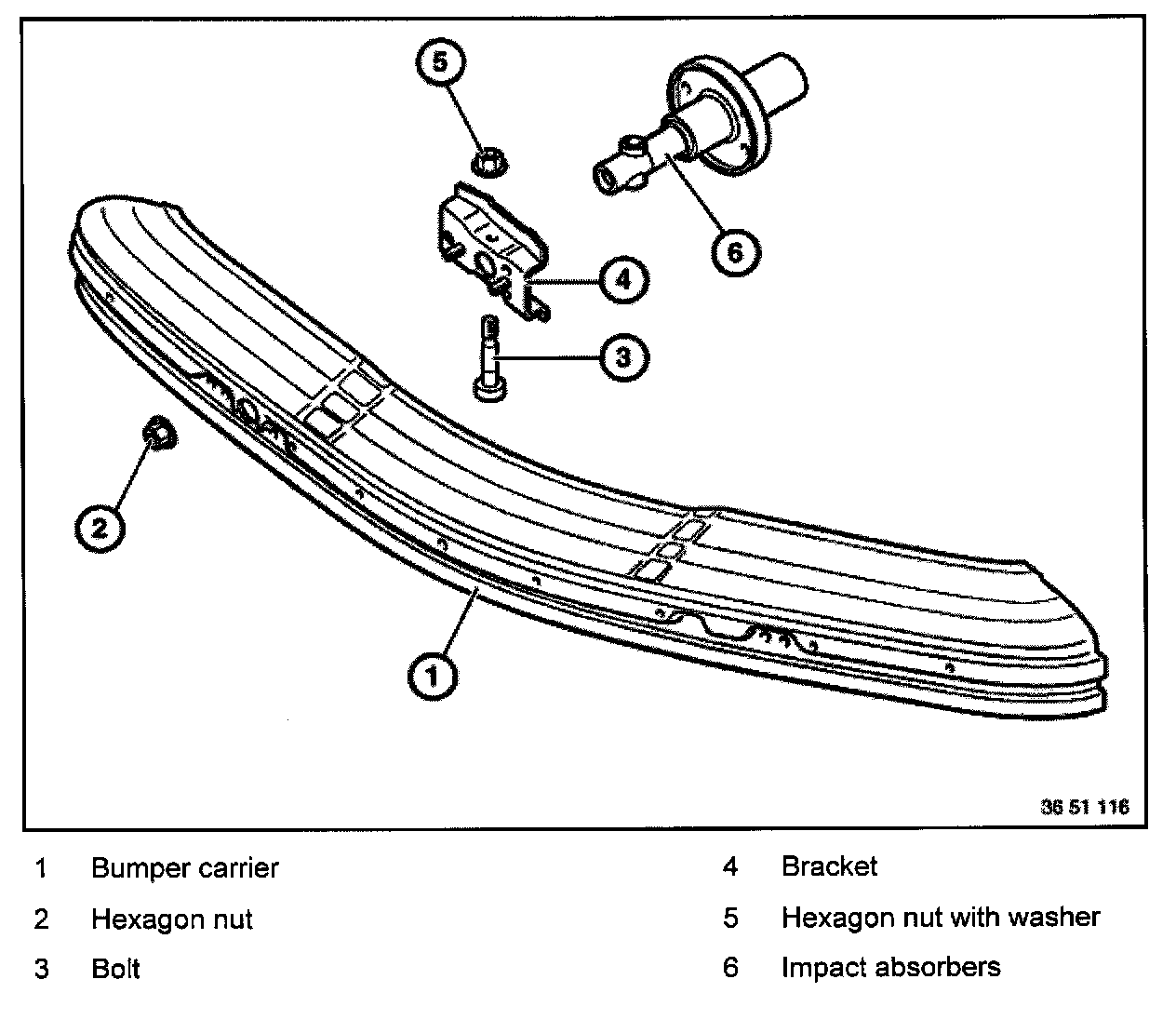

Survey Of Front Bumper Carrier and Retaining Parts


Survey Of Front Bumper Carrier And Retaining Parts:
