Knock Sensor, Camshaft and Crankshaft Position Sensor
Knock Sensor, Camshaft and Crankshaft Position Sensor

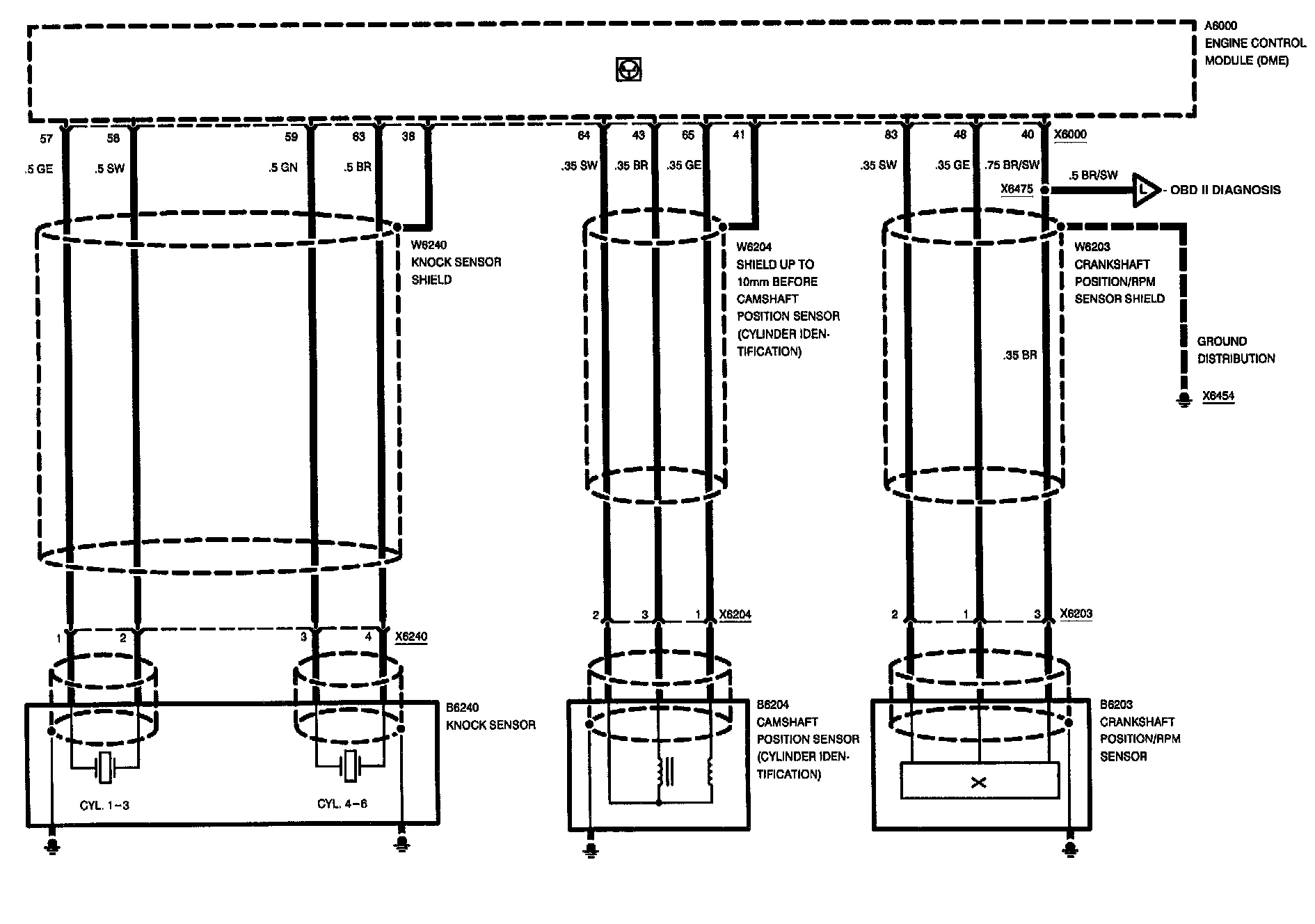

Engine Control System: Knock Sensor, Camshaft And Crankshaft Position Sensor:
