Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Exhaust Gas Flap Valve

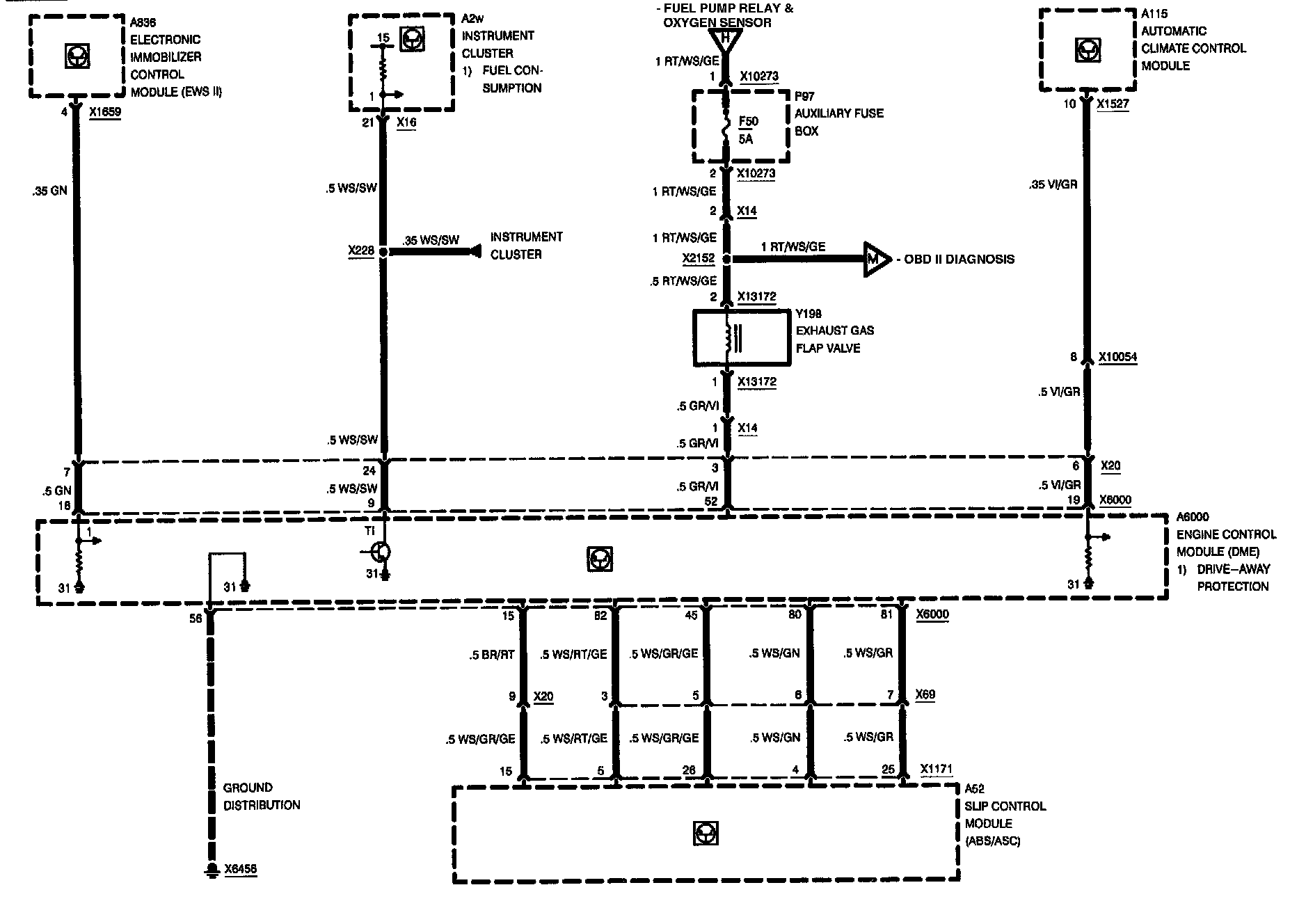

Exhaust Gas Flap Valve

Engine Control System: Exhaust Gas Flap Valve:
