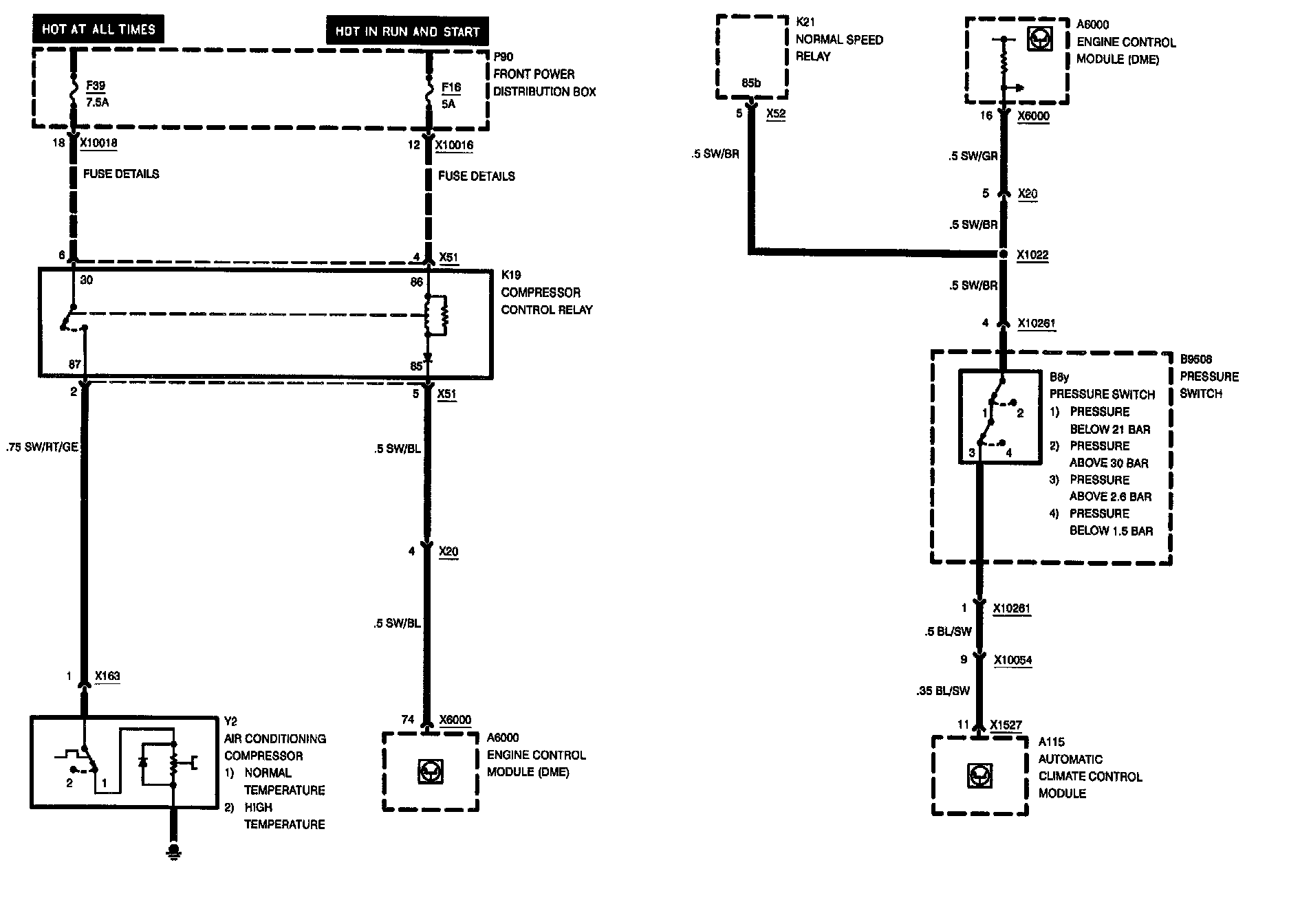

Compressor Control Relay and Pressure Switch

Engine Control System: Compressor Control Relay And Pressure Switch:
