M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
TXD, Pin 20
TXD, Pin 20

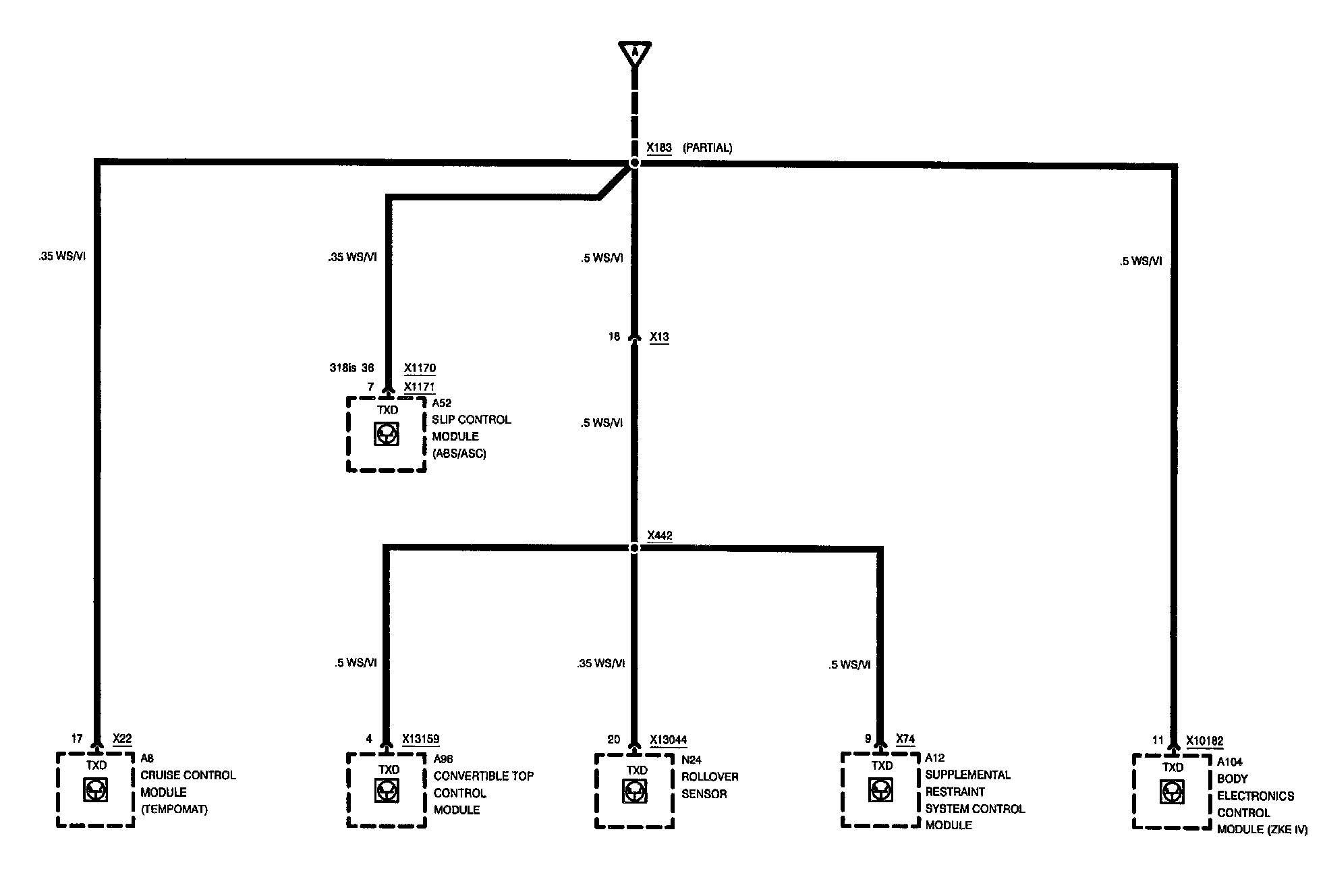

Data Link: TXD, Pin 20 (Part 1 Of 2):

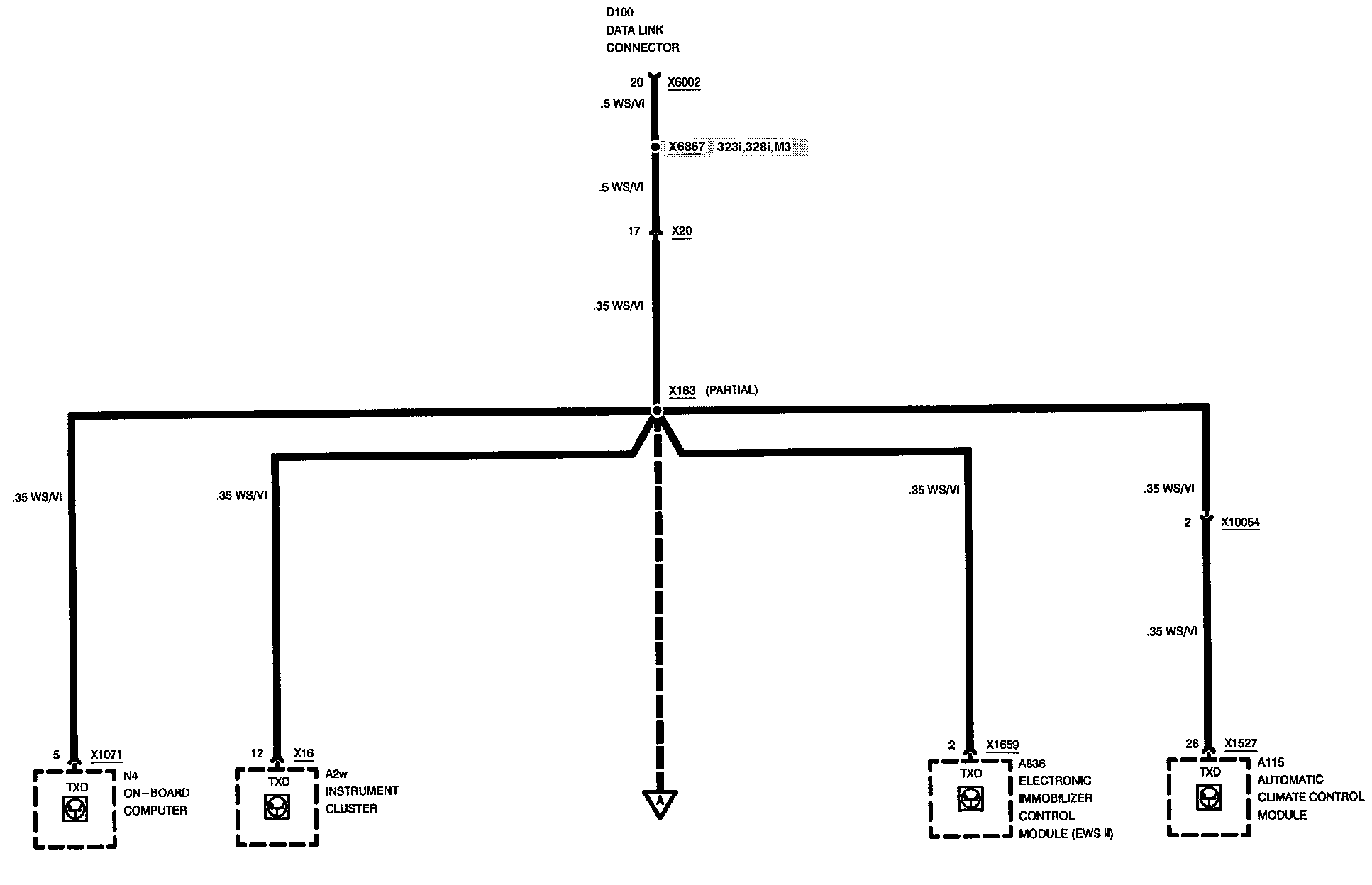

Data Link: TXD, Pin 20 (Part 2 Of 2):
