Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> RXD, Pin 15

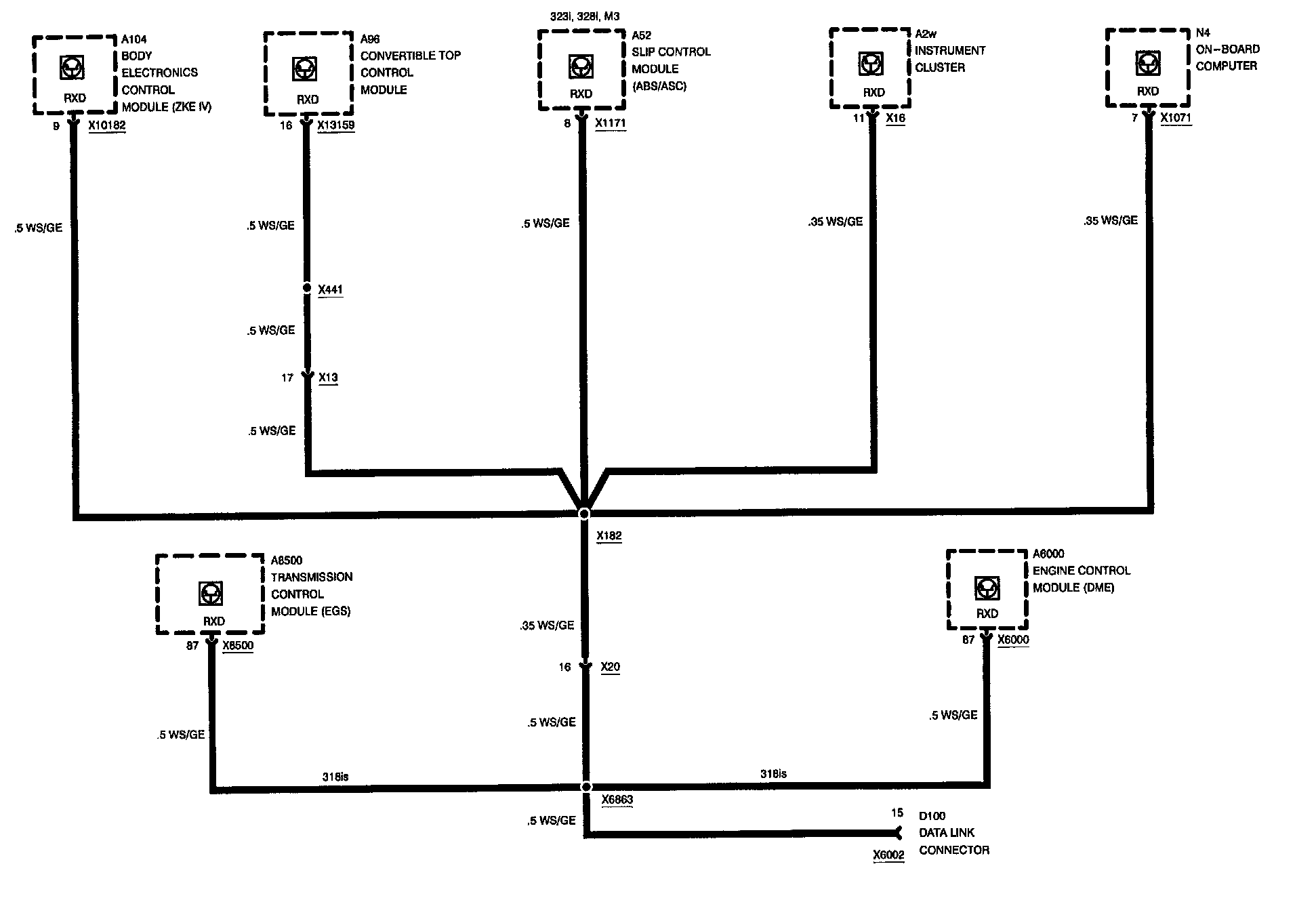

RXD, Pin 15

Data Link: TXD, Pin 15:
