FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
1999
>>
M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Data Link Connector, Pins 7, 16, 17 and 18
Data Link Connector, Pins 7, 16, 17 and 18

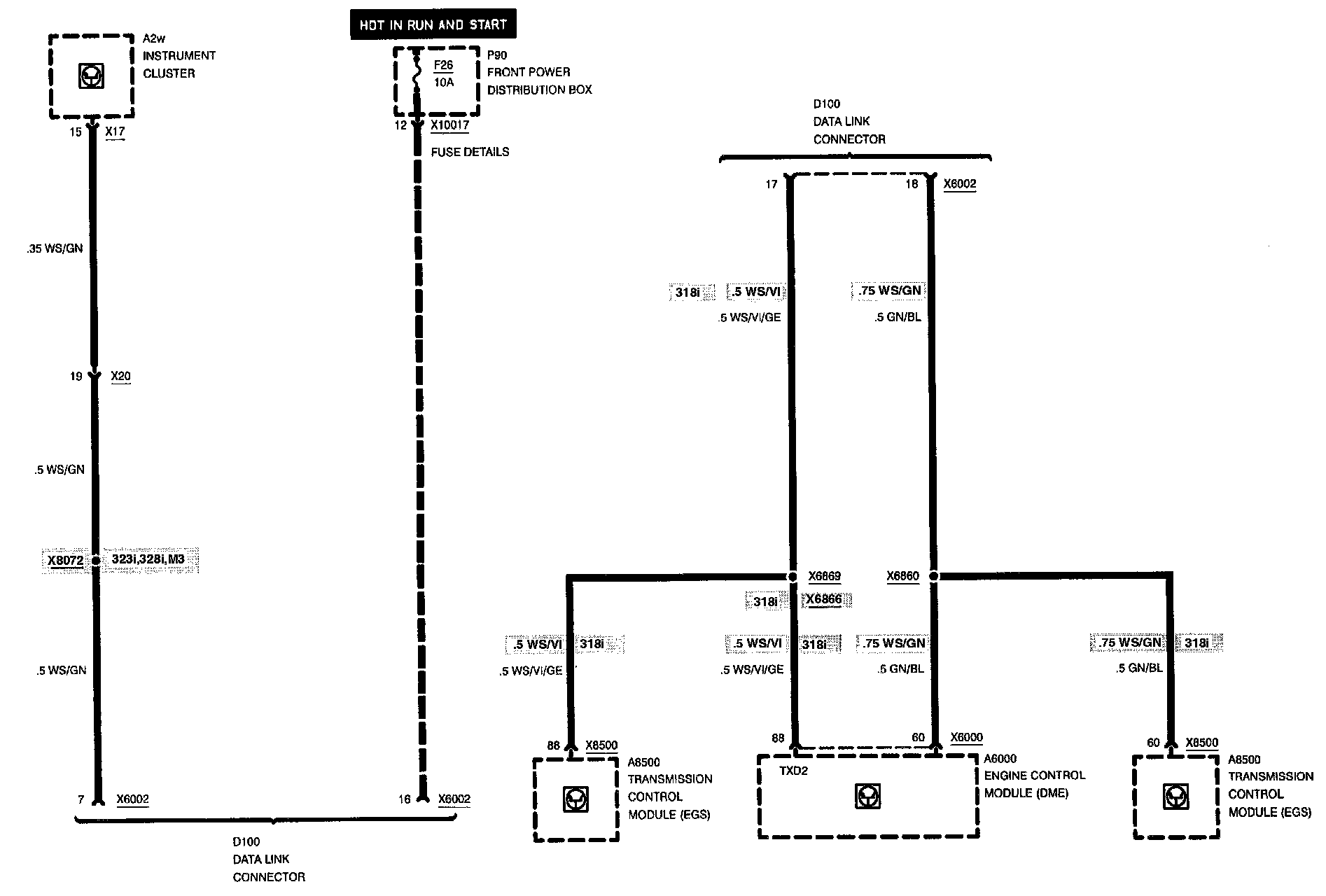

Data Link: Data Link Connector, Pins 7, 16, 17 And 18:
