Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Data Link Connector, Pins 12 and 14

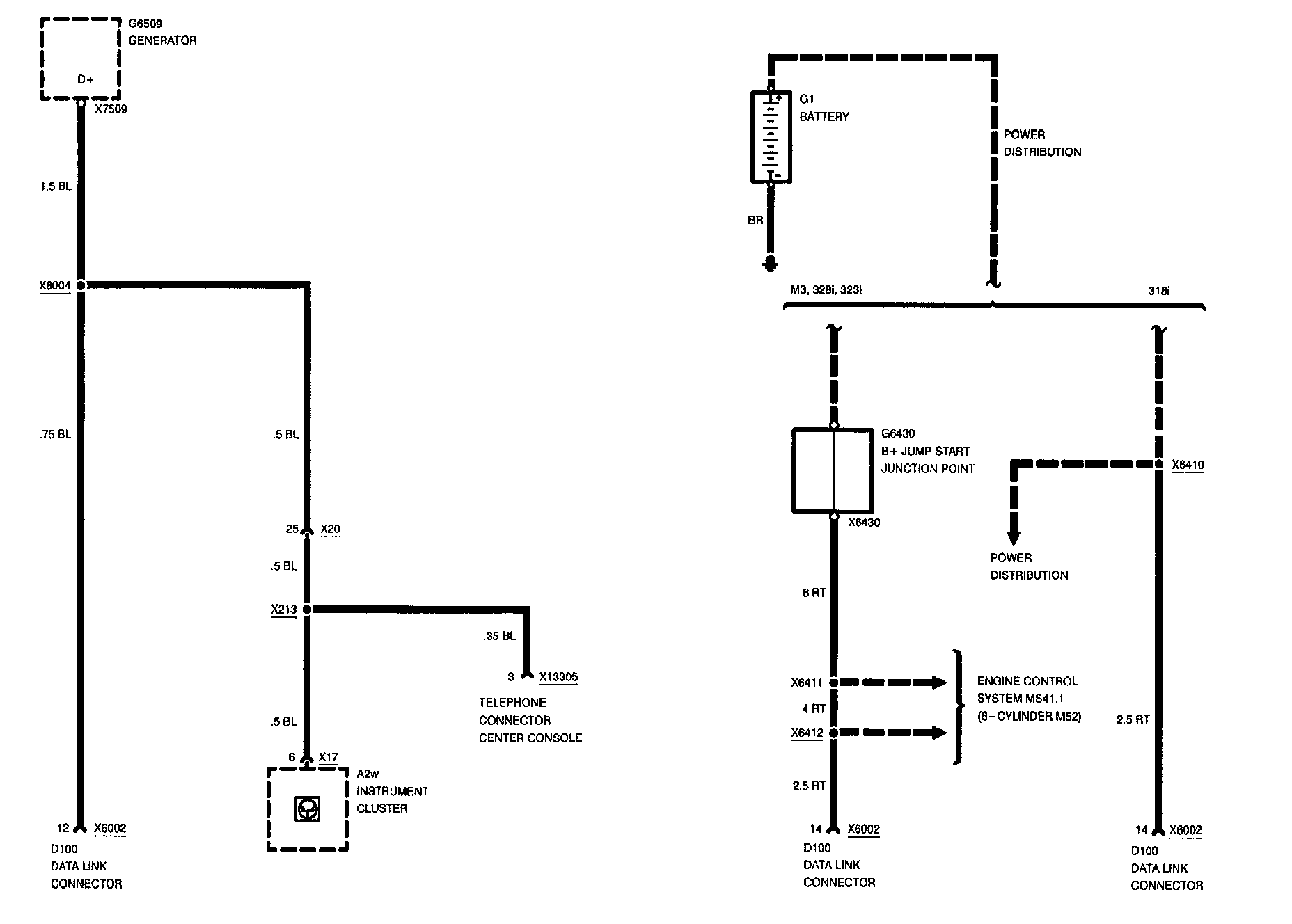

Data Link Connector, Pins 12 and 14

Data Link: Data Link Connector, Pins 12 And 14:
