Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> Ground X13230

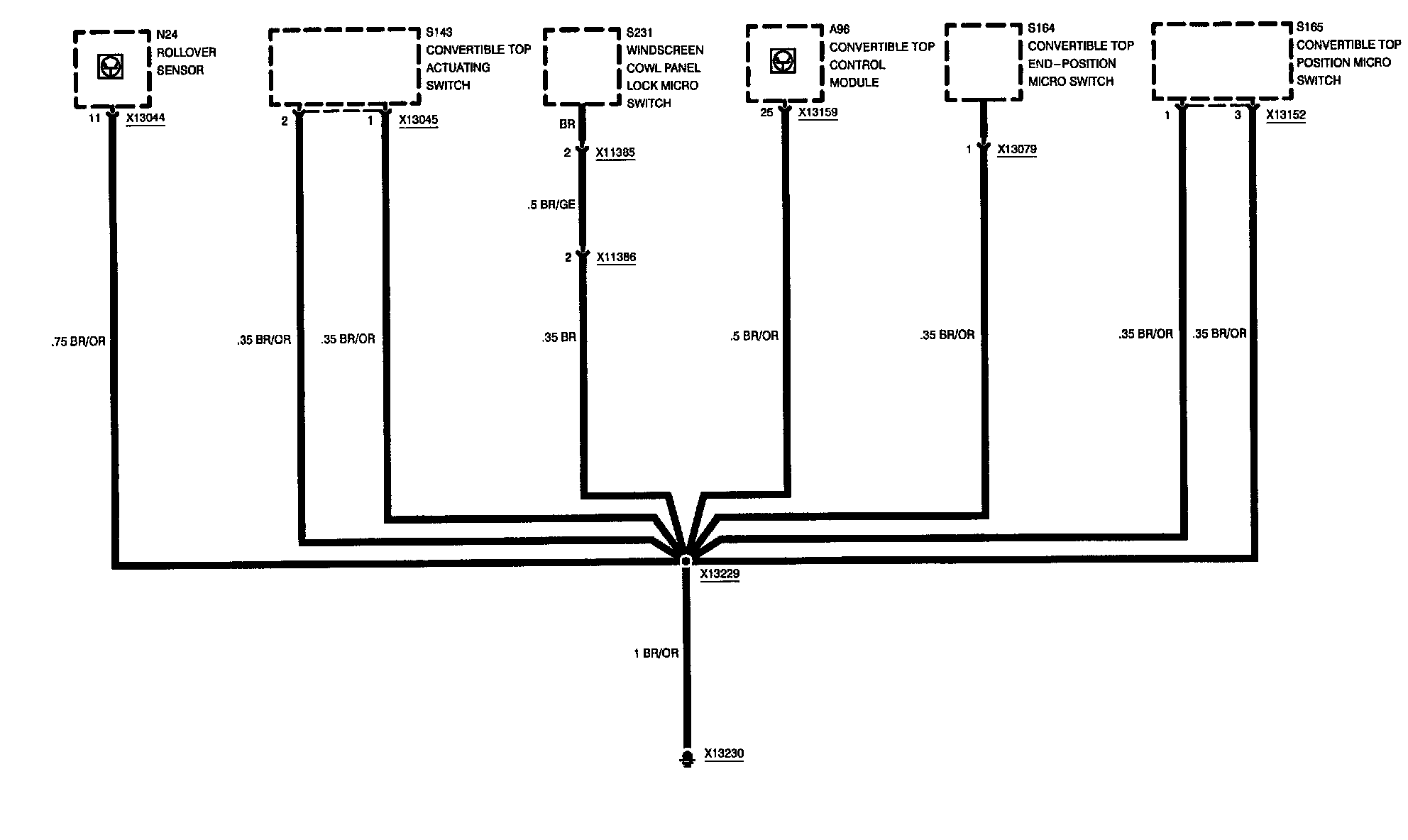

Ground X13230

Ground Distribution: Ground X13230:
