BMW
>>
1999
>>
M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Fuses 34 - 39
Fuses 34 - 39

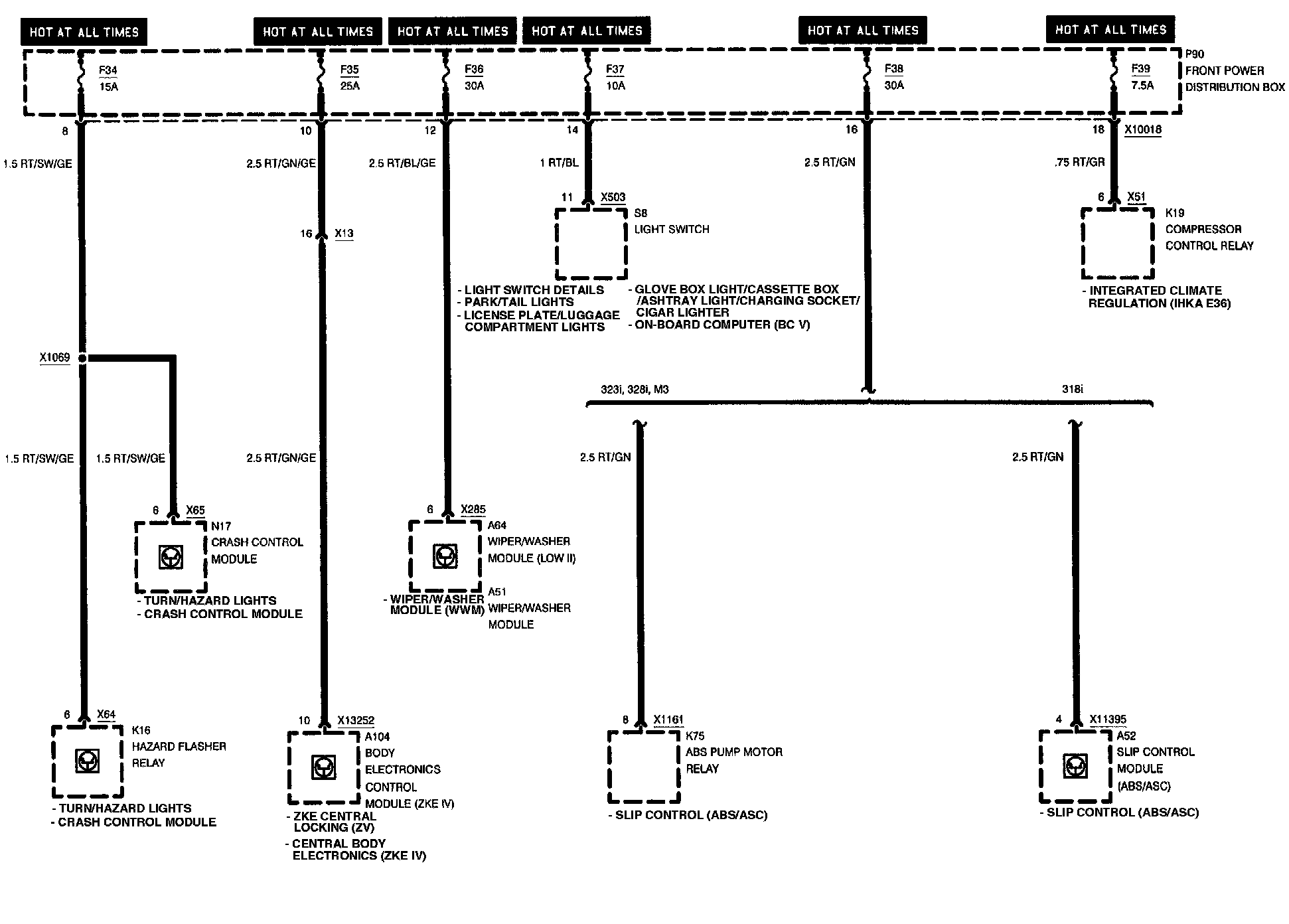

Fuse Details: Fuses 34 - 39:
