M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>

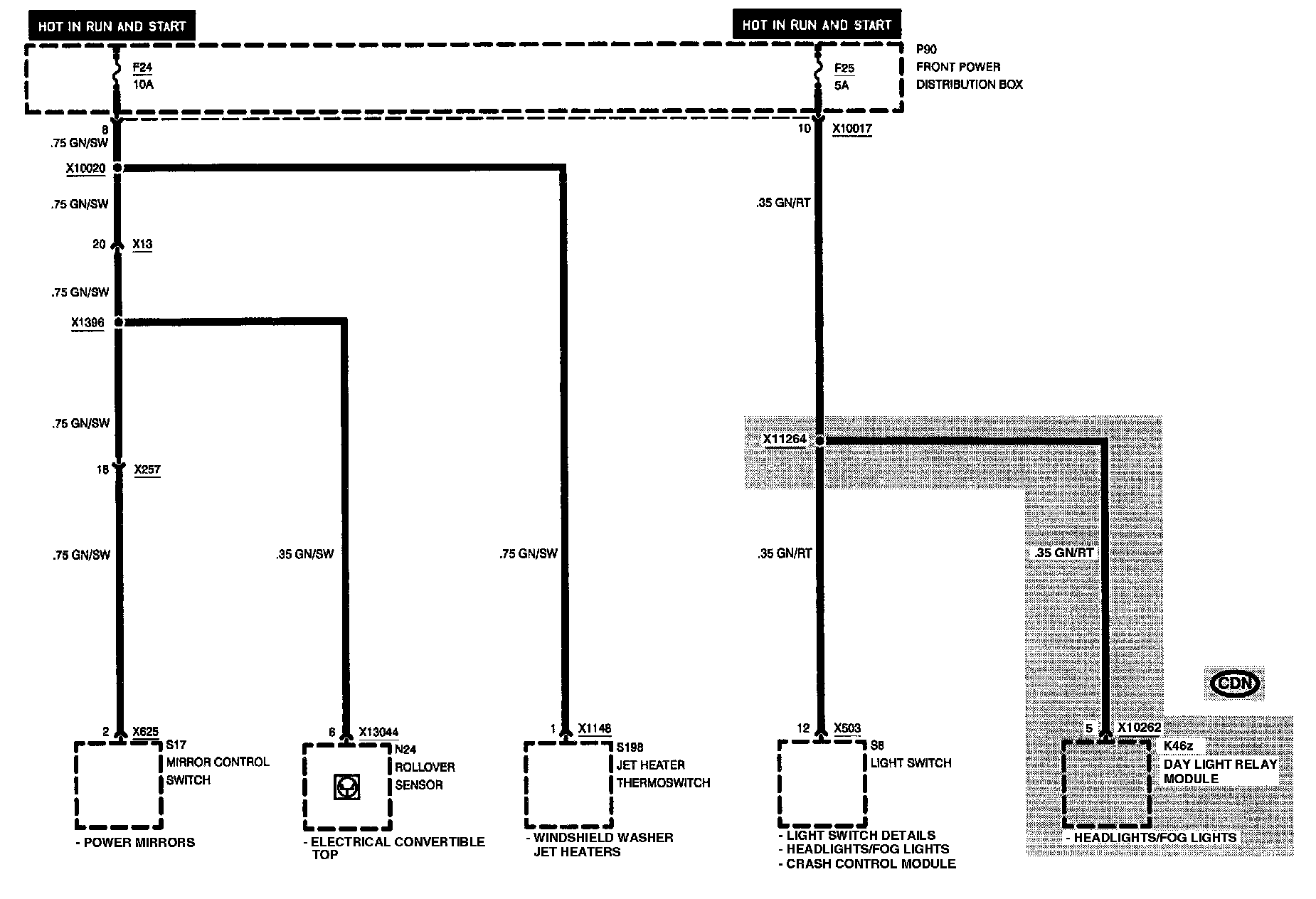

Fuses 24 - 25
Fuses 24 - 25
Fuse Details: Fuses 24 - 25:
