M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>

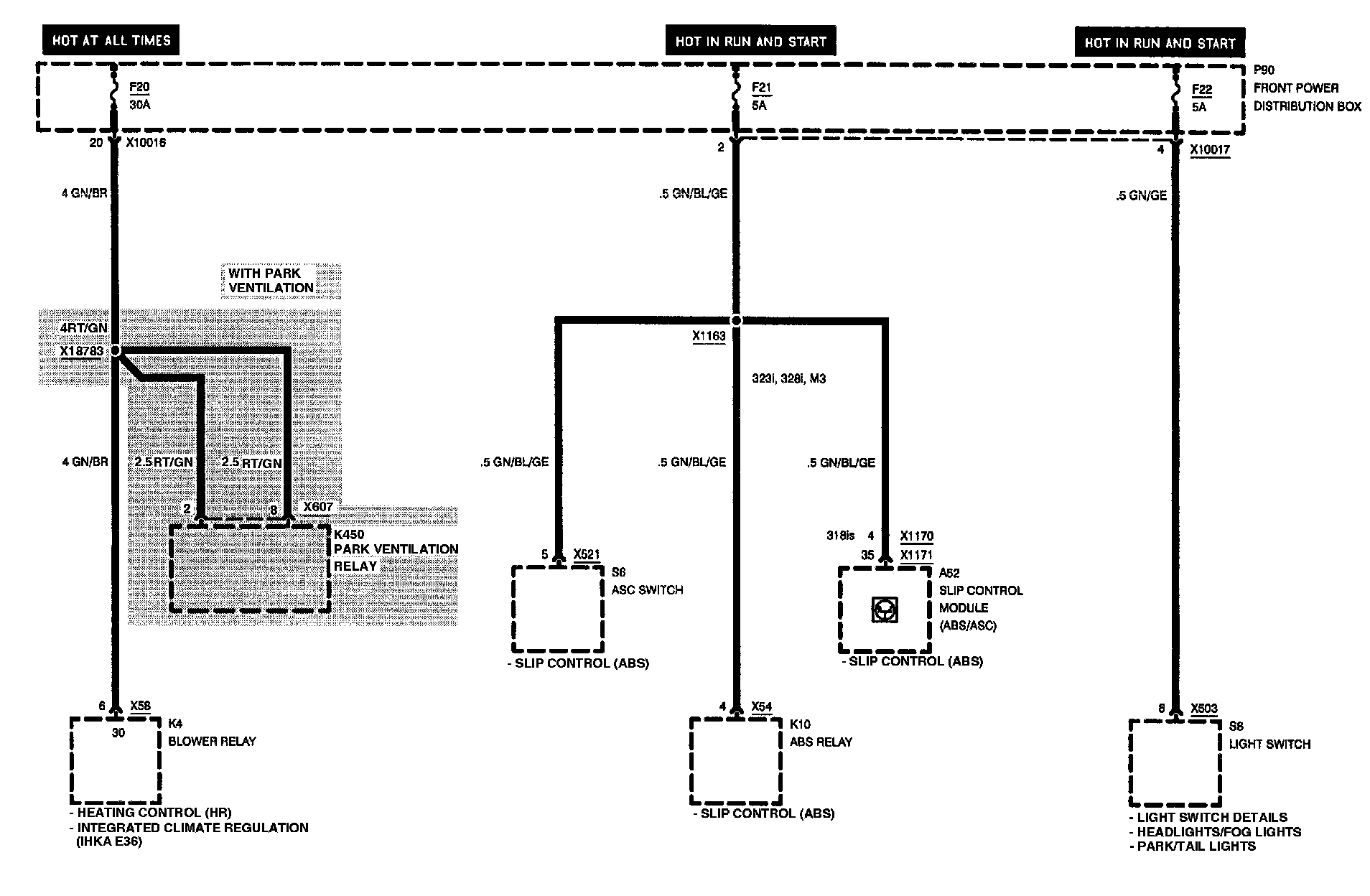

Fuses 20 - 22
Fuses 20 - 22
Fuse Details: Fuses 20 - 22:
