Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Clock >> Multi-Function Clock >> Sub-System Diagrams

Sub-System Diagrams

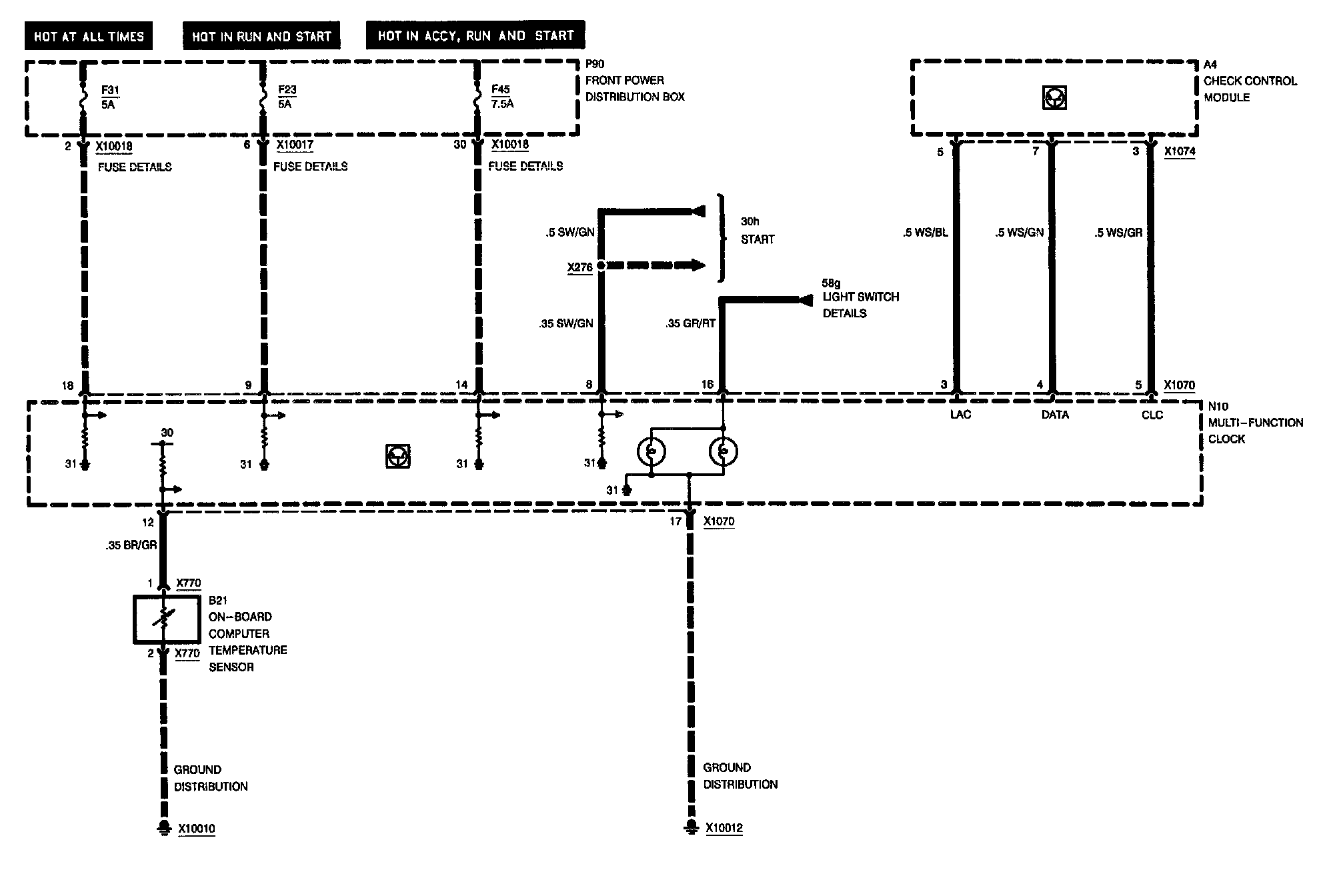

Multi-Function Switch: Sub-System Diagram:
