Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brakes and Traction Control >> System Diagram >> Teves Mark IV/3 Hydraulic System Controls

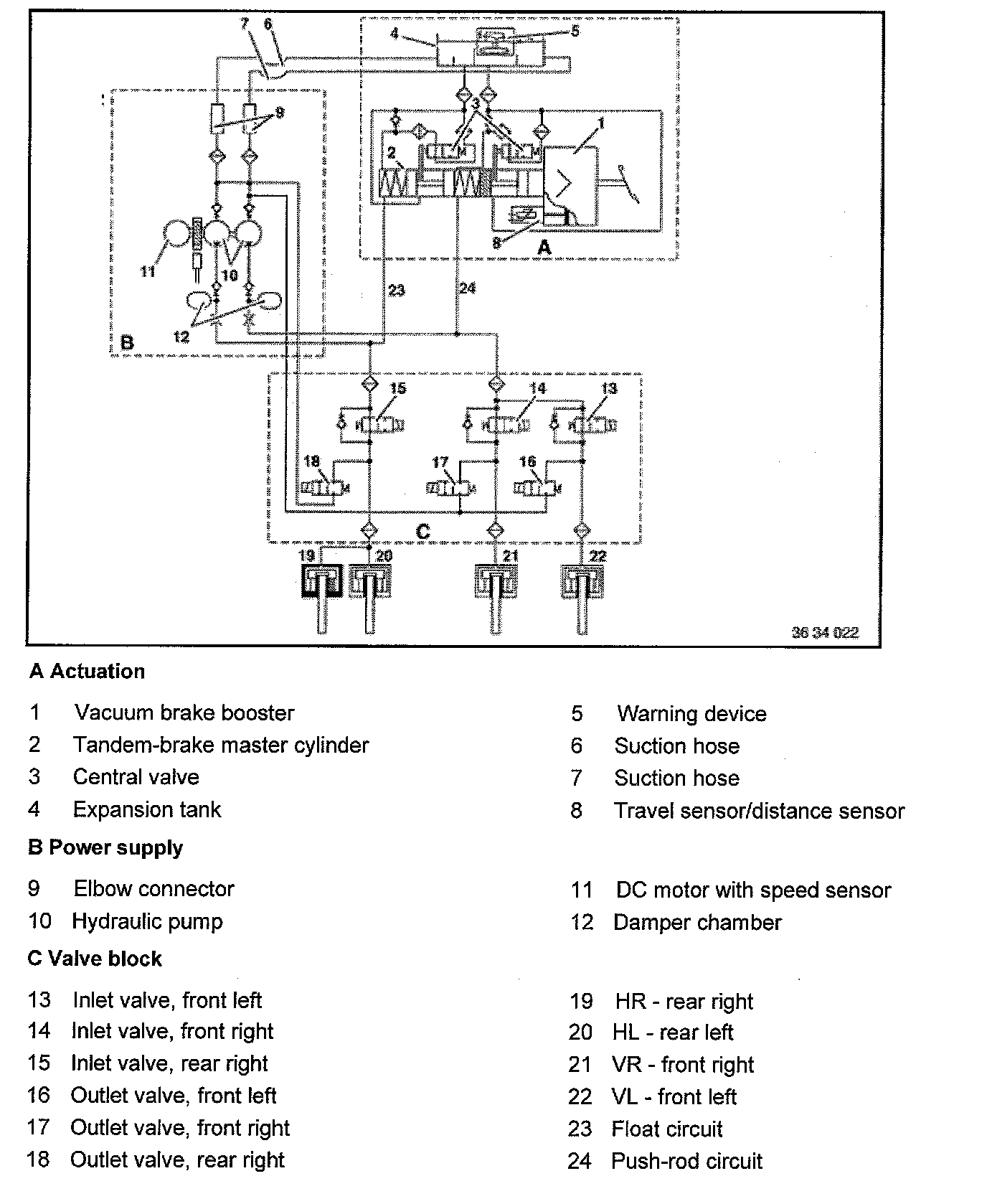

Teves Mark IV/3 Hydraulic System Controls
