Sub-System Diagrams

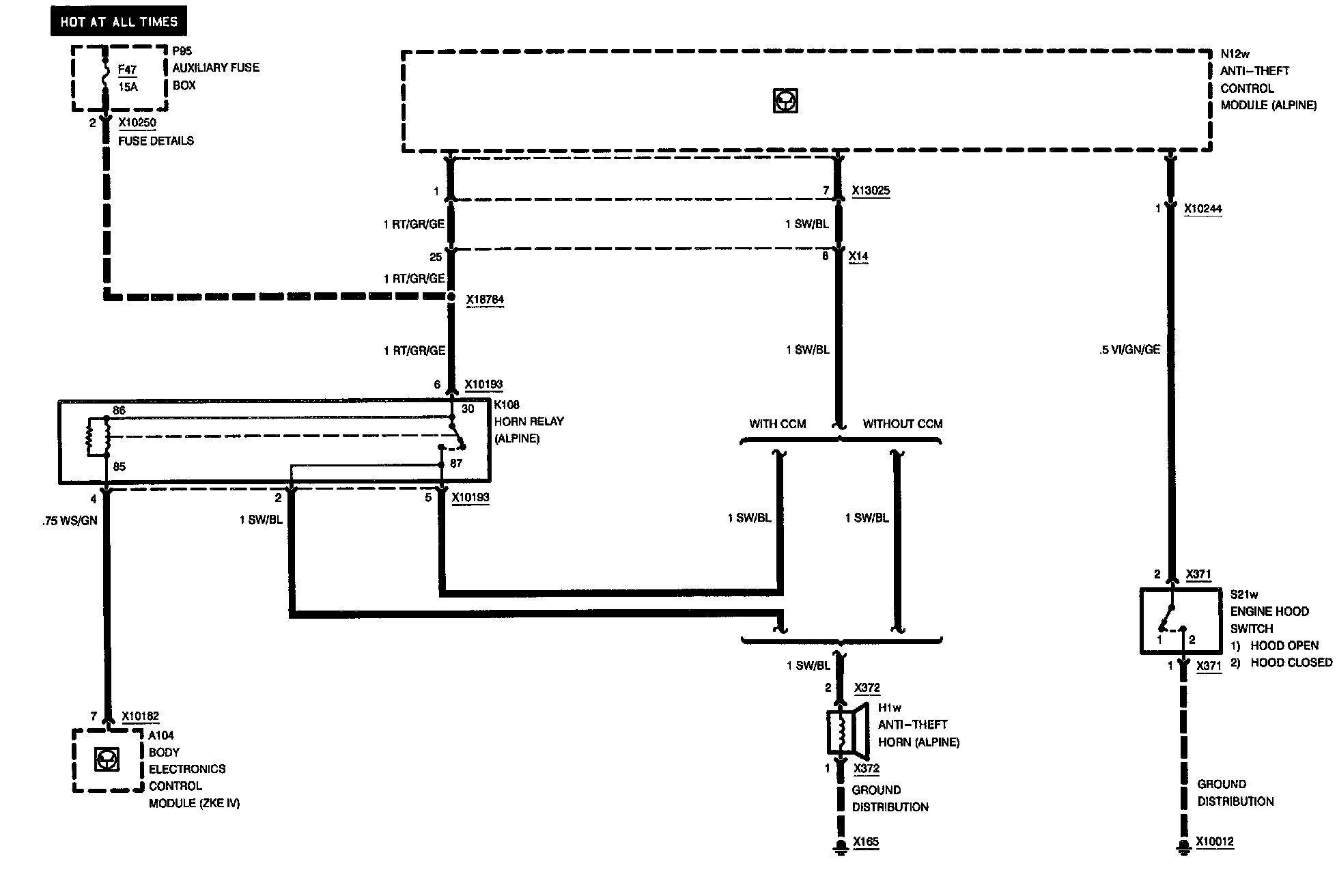

Anti-Theft System (Alpine): Sub-System Diagram (Part 1 Of 2):

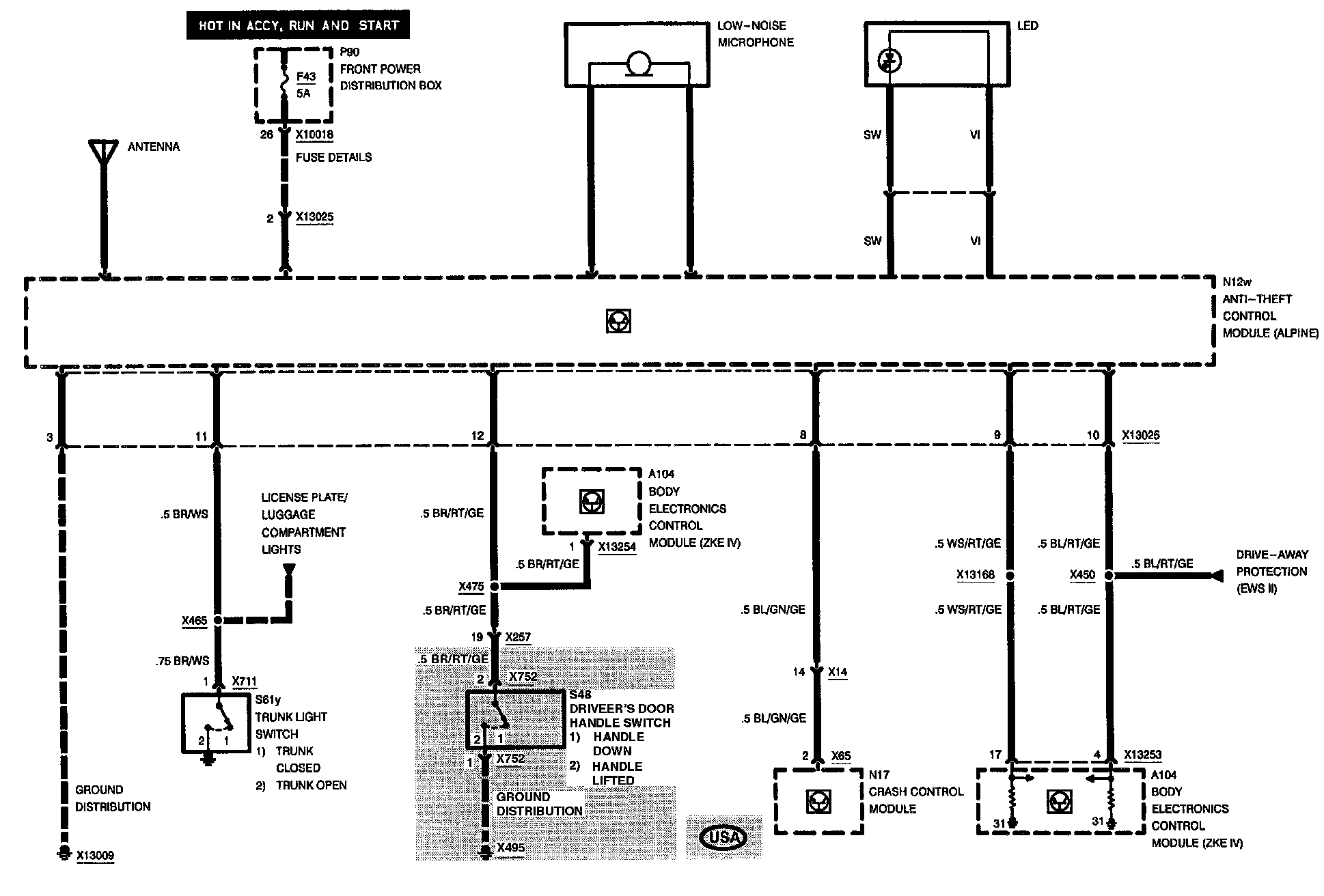

Anti-Theft System (Alpine): Sub-System Diagram (Part 2 Of 2):
