Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antenna, Radio >> Sub-System Diagrams

Sub-System Diagrams

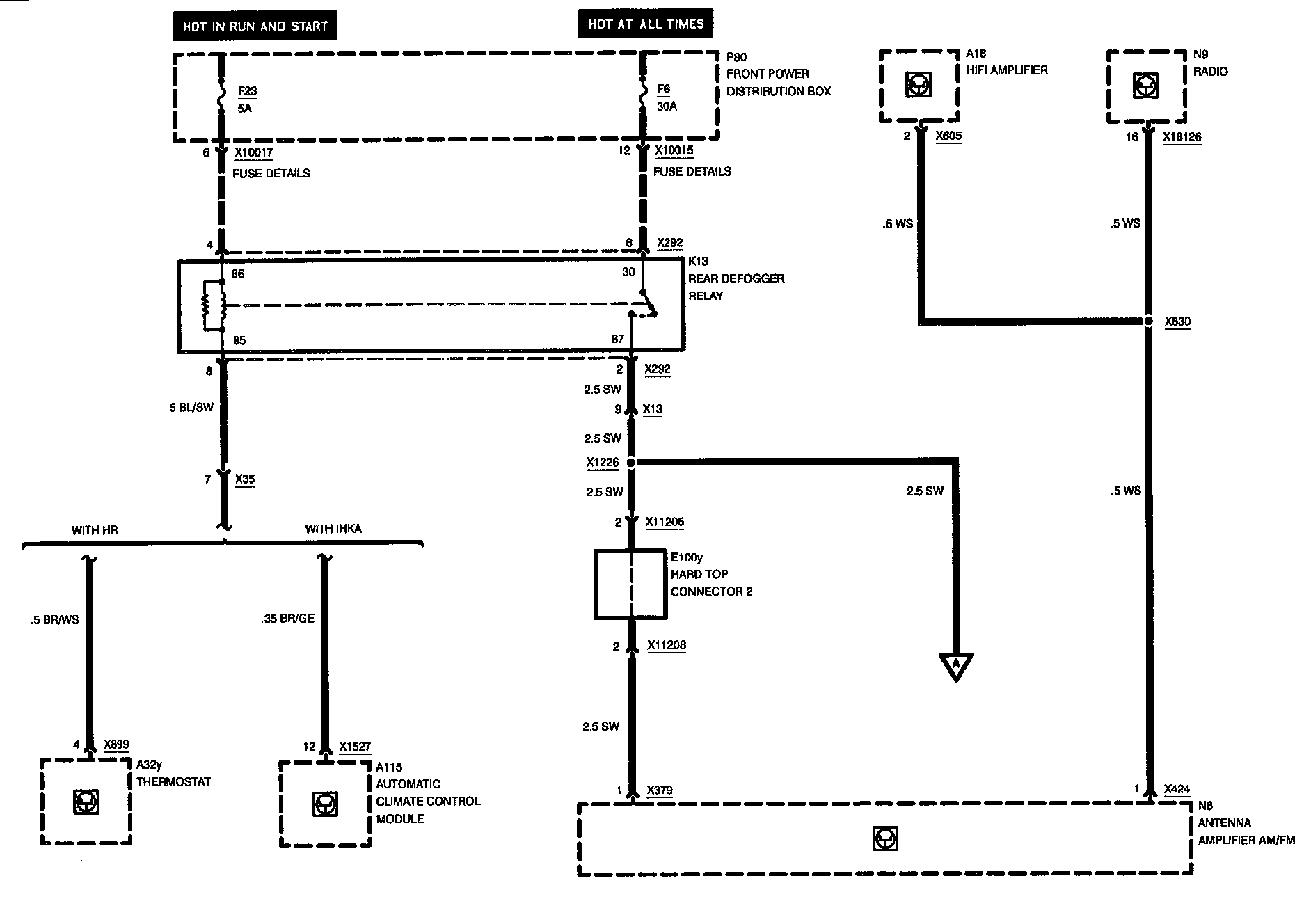

Rear Window Defogger/Antenna: Sub-System Diagrams:

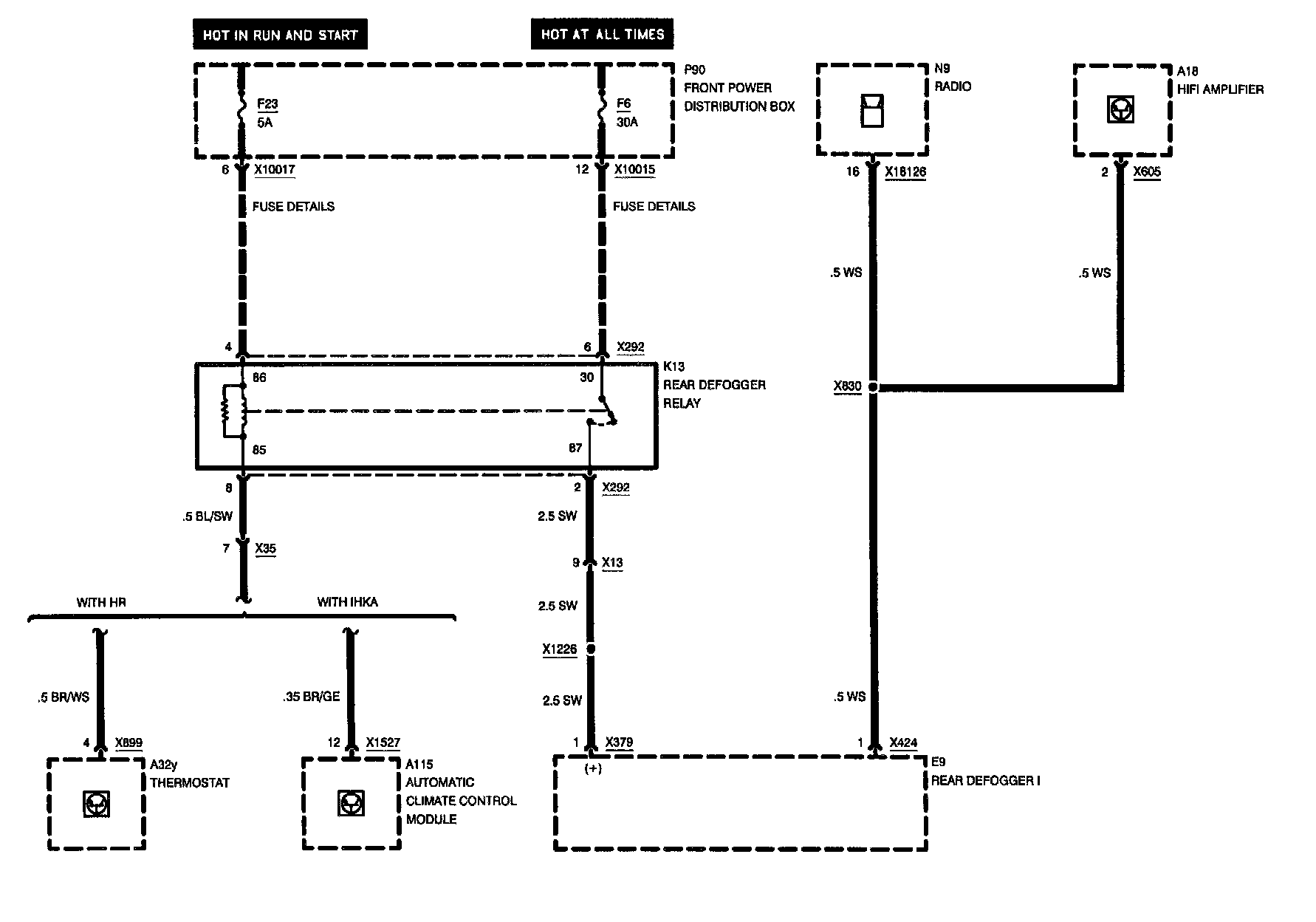

Rear Window Defogger/Antenna: Sub-System Diagrams:

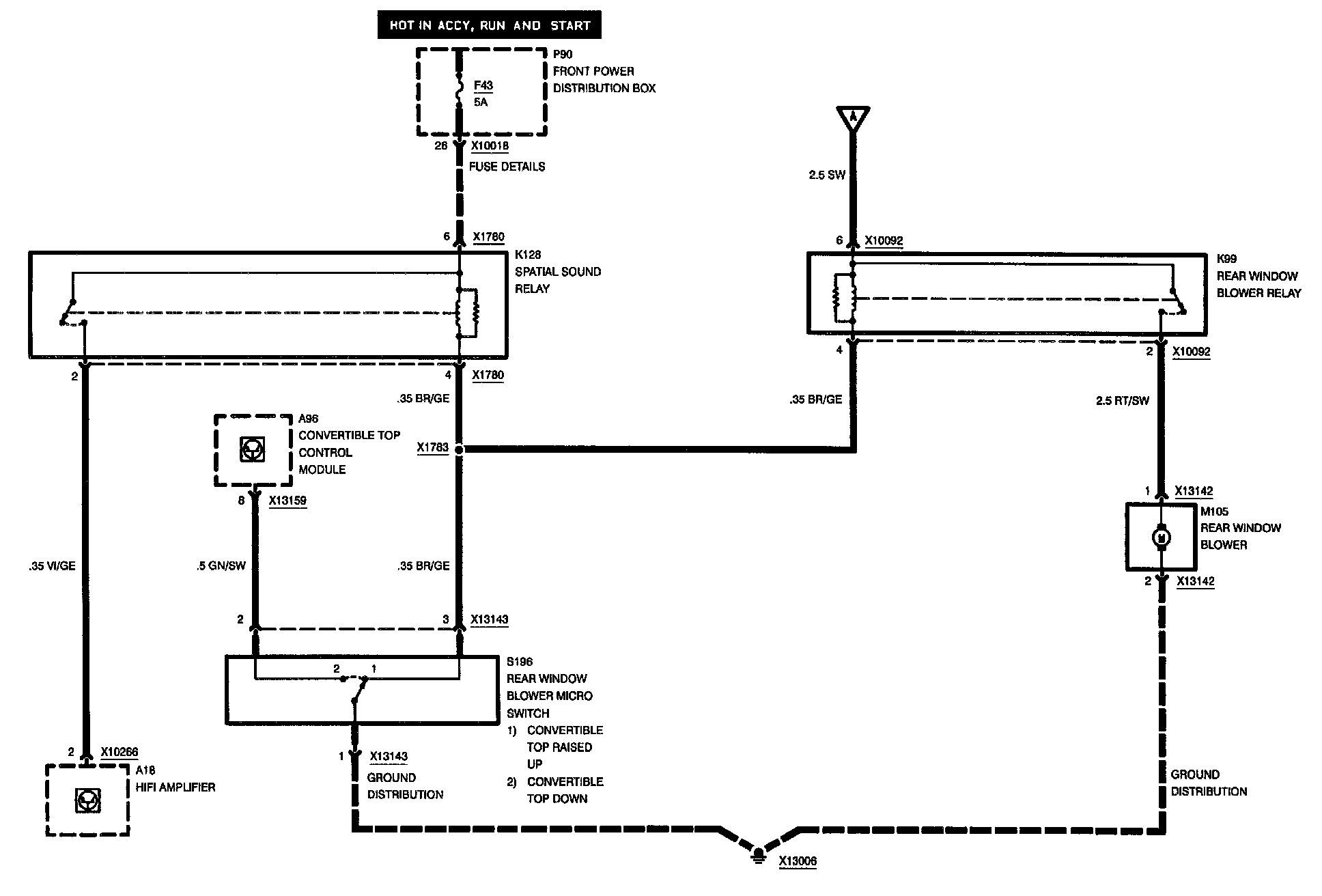

Rear Window Defogger/Antenna: Sub-System Diagrams:
