Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antenna, Radio >> 3-Antenna-Diversity

3-Antenna-Diversity

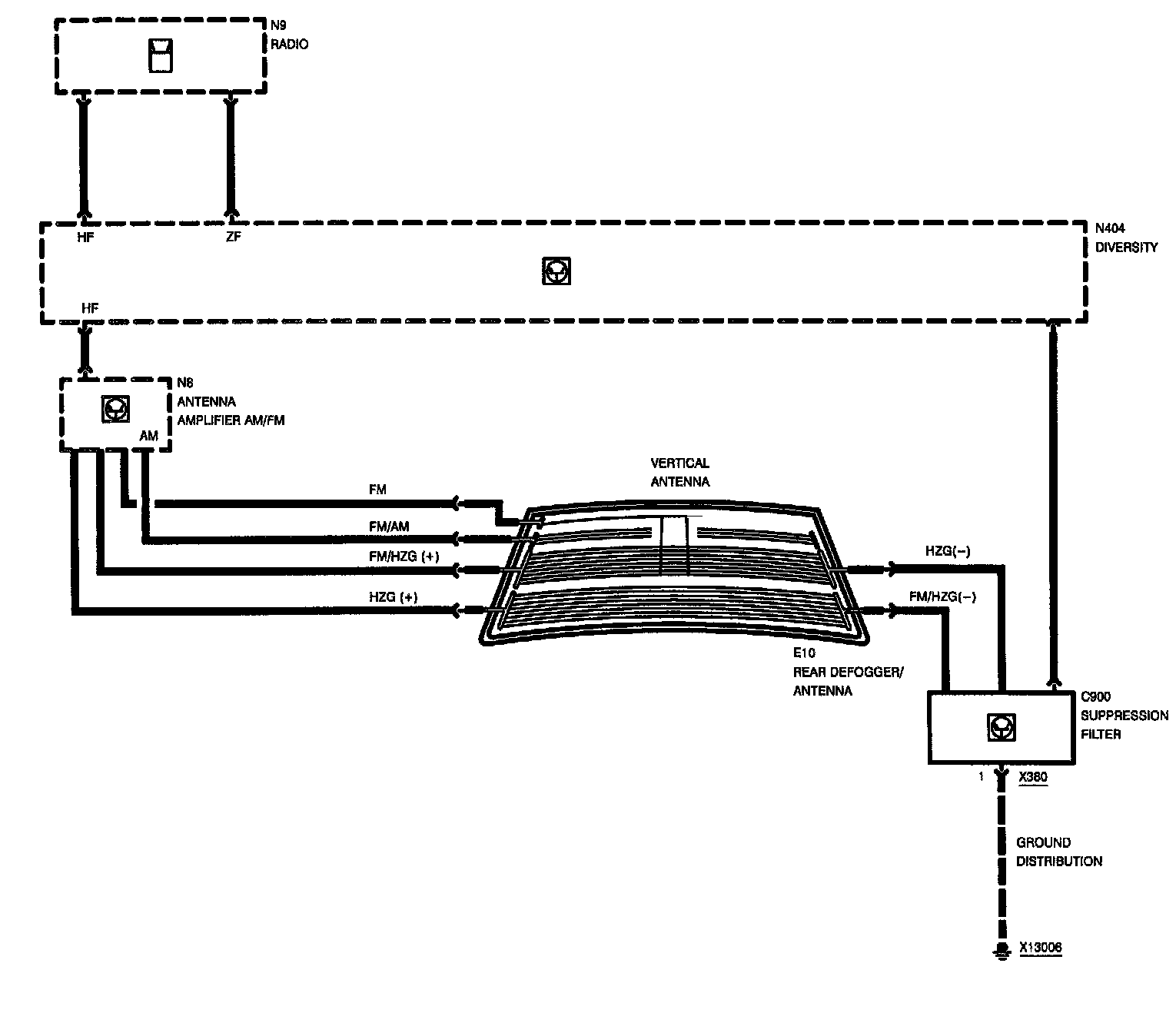

Rear Window Defogger/Antenna: 3-Antenna-Diversity:
